Most robots use electrical actuators, however this little fella packs much more punch. Researchers have created a brand new sort of minuscule combustion engine that provides this tiny frog robotic explosive leaping talents, in addition to wonderful motion management.
The thought of a robotic operating on combustion gas appears final century, however as a workforce from Cornell College’s Natural Robotics Lab factors out, at present’s batteries are heavy they usually do not carry a lot vitality – so there are limits on how a lot efficiency you will get out of electrical actuators.
These limits are rather a lot larger should you change to energy-dense chemical fuels, so the workforce set about designing an interesting new sort of fast, high-frequency robotic actuator that runs rather a lot like a daily combustion engine.

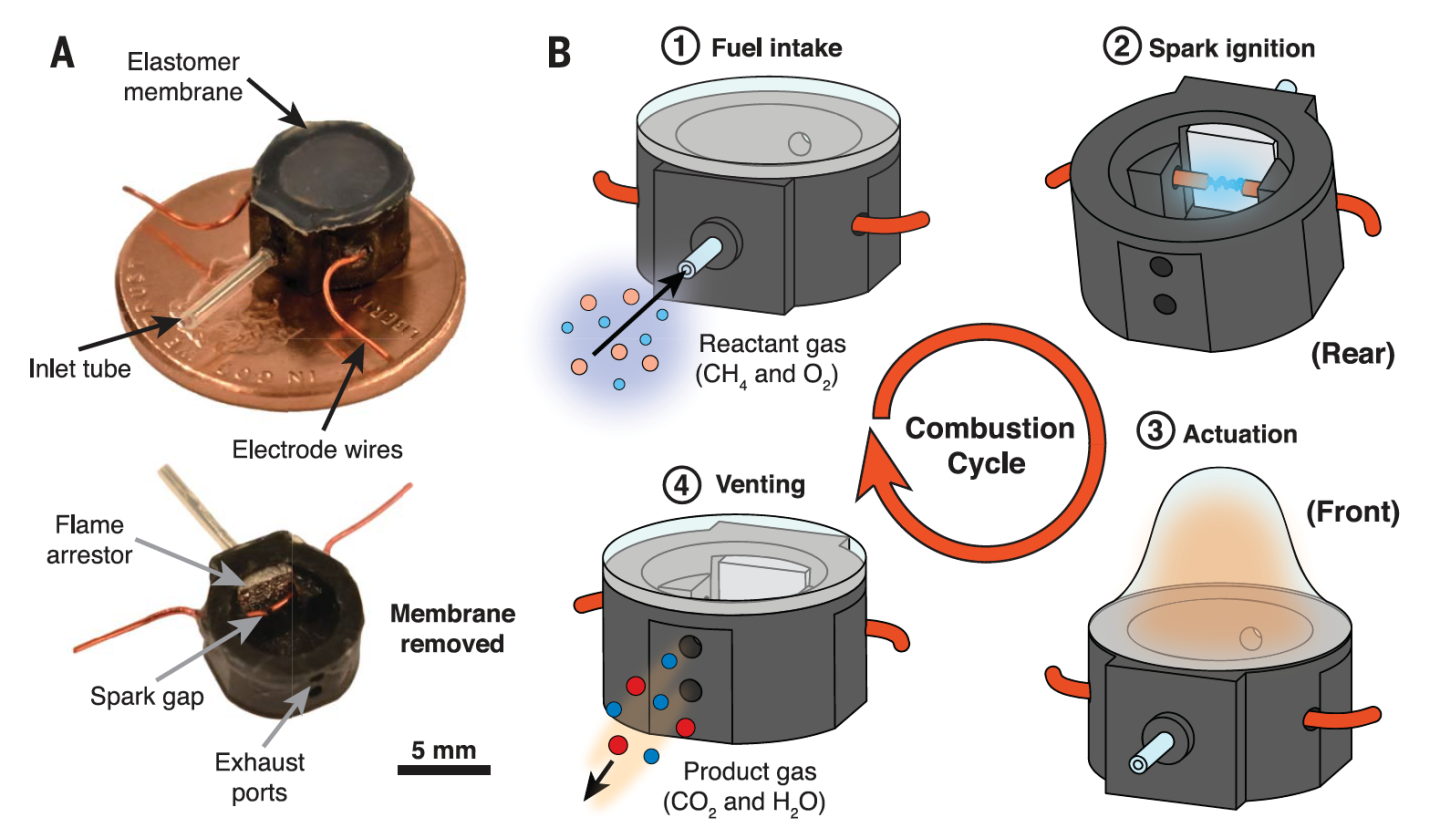

Someplace round 5 mm (0.2 in) in diameter, these tiny actuators settle for methane and oxygen right into a easy 0.09-ml combustion chamber, and light-weight it up with a spark. The chamber is roofed on the high with a extremely elastic silicone Dragon Pores and skin membrane, which acts a bit just like the piston in a automobile engine, stretching out to develop the chamber quantity because the gas burns, then recovering shortly to push the exhaust gases out tiny vents within the sides.
Cornell College
This all occurs in a short time, however the finish result’s this: the larger the bang, the extra the membrane pops out. The actuators can deal with bangs that develop the chamber quantity by as a lot as 140%, representing forces better than 9.5 N, they usually’re quick, too, working at frequencies over 100 cycles per second if required.
The Cornell workforce embedded 3D-printed prototypes of those little combustion actuators above the foot pads of a tiny, inflexible four-legged frog robotic, such that any time a selected actuator’s membrane pops out, the foot will get pushed downward. They designed a management scheme that might range the spark frequency, gas equivalence ratio and gas movement of the actuators, then coupled these controls for the 2 left legs and two proper legs, after which set about seeing what they may make the robotic do.
They efficiently received it to crawl ahead in a vibrating gait, and hop ahead at varied heights, together with hopping up onto larger surfaces. They created a snake-like ahead stroll primarily based on rotation, and received it to spin clockwise or anticlockwise on the spot.
Proving the actuator’s explosive capabilities, they made the robotic bounce a powerful 56 cm (1.8 ft) within the air, they usually demonstrated that it might transfer on a wide range of completely different stable, excessive and low friction, and free surfaces. And so they loaded it up with 32 grams of cargo weight – greater than 22 instances the robotic’s personal physique weight – and confirmed they may nonetheless management its motion.
On the finish of all of it, these little actuators might give roboticists a helpful additional choice when super-quick actions are required – think about if Atlas had the power to explosively help its leg hydraulics, for instance, or throw a combustion-powered punch. Eep.
The analysis is obtainable within the journal Science. Take a look at a video beneath. Apologies for the music, I could not assist myself.
Frog robotic walks, crawls and leaps utilizing combustion actuators
