Preparation and characterization of FePt, AuNCs and Au@FePt NPs
The FePt and AuNCs NPs had been synthesized utilizing the literature technique with modifications, and a collection of experiments had been performed to find out the morphology of FePt, AuNCs and Au@FePt NPs, corresponding to TEM, XRD and DLS. The morphologies revealed by high-resolution TEM (HRTEM) for FePt and Au@FePt had been proven in (Fig. 1A) which exhibits the uniform form of FePt nanoparticles, which had been roughly 4 nm in measurement. Determine. 1B revealed that every one three diffraction peaks had been listed to FePt. Elemental mapping of single and a number of FePt particles is proven in Fig. 1C which demonstrated Fe and Pt species introduced within the nanoparticles. The TEM picture of AuNCs is proven in Fig. 1D to find out the floor morphology of the cage’s current gap to load small molecules and HRTEM photographs was proven in Extra file 1: Fig. S2. Determine 1E exhibits a excessive payload of FePt in AuNCs for dual-mode imaging as exogenous distinction brokers. The intrinsic properties of Au@FePt NPs had been investigated in HRTEM with the loading of FePt NPs revealing a morphology with a diameter of ~ 4 nm inside the outlet of the AuNCs. The particle measurement and distribution by DLS of Au@FePt in Fig. 1G revealed that the scale of Au@FePt barely elevated (roughly 40 nm). The absorption spectra of AuNCs and Au@FePt NPs are introduced, indicating the encapsulation course of didn’t have an effect on the optical properties of AuNCs and FePt to function glorious photothermal brokers. Apart from, the absorption of Au@FePt NPs displayed a broad peak centered at 900 nm in pH 6.5 phosphate buffer resolution (PBS) (Fig. 1H) which indicated the native floor plasmon resonance (LSPR) broadens the NIR absorption area. To additional consider the homogeneity and dispersibility of Au@FePt in several pH buffers upon laser irradiation [43], the change in hydrodynamic radius of Au@FePt was recorded for 1 day as proven in Extra file 1: Fig. S3. The end result suggests the Au@FePt nanoprobe might be an acceptable candidate beneath regular physiological situation for drug supply purposes.
A The TEM photographs and B the powder X-ray diffraction (PXRD) evaluation of FePt nanoparticles (scale bar = 5 nm). C The STEM-EDS elemental mapping photographs and D the TEM photographs of AuNCs nanoparticles. E The TEM photographs of Au@FePt nanoparticles. F The excessive decision TEM of 1 gold nanocage loaded FePt. G Hydrodynamic measurement distribution of Au@FePt nanoparticles. H UV–Vis spectrum of Au@FePt and AuNCs nanoparticles. I PA depth of Au@FePt NPs in several concentrations
Photoacoustic and photothermal properties of the Au@FePt NPs
As proven in Fig. 1I, the Au@FePt NPs exhibit intensive PAI indicators upon irradiation at 1064 nm captured by the Vevo 2100 animal PAI system, and their PA indicators elevate linearly with the Au@FePt concentrations. The excessive PAI sensitivity was primarily because of the conspicuous absorption of Au@FePt NPs at 1064 nm. Photothermal-heating curves of Au@FePt NPs and corresponding thermal photographs had been exhibited to reveal that Au@FePt NPs are possible for photothermal brokers [44]. Moreover, after 1064 nm laser irradiation, the temperature elevation of Au@FePt NPs in aqueous resolution elevated in a laser power-dependent method (from 1.0 to 1.5 W/cm2), as proven in Fig. 2A. As proven in Fig. 2B, the temperature for Au@FePt NPs elevated significantly with the rise in AuNCs’ focus. In distinction, the temperature of the management group’s deionized (DI) water confirmed negligible modifications at 1.2 W/cm2, which demonstrated that the Au@FePt NPs might convert NIR-II gentle vitality into thermal vitality adequately [45]. As well as, only a negligible change was seen after three repeated heating cycles upon 1064 nm laser on/off (1.5 W/cm2) of Au@FePt NPs as indicated in Fig. 2C. Considerably, the AuNCs contributed glorious photothermal conversion properties to to Au@FePt NPs which affords good proof for in vivo PTT experiments. The photothermal conversion effectivity worth (η) was 31.3% as proven in Fig. 2D which was a bit increased than beforehand reported nanoparticles [46]. These outcomes confirmed that this Au@FePt nanoprobe has considerably excessive photothermal conversion capability and is a perfect photothermal agent for twin imaging guided gentle PTT mixed with CDT. Au@FePt nanoprobes containing 1 mg Fe had been dispersed in 1 mL HNO3 resolution (pH = 5.8, 7.4, with or with out laser) in a dialysis tubing bag and the filtrates had been collected for Fe focus quantification with ICP-OES with at 24-h intervals. The outcomes indicated ~ 18.9%, ~ 8.2% (with laser irradiation) ~ 6.2% and a pair of.4% (with out laser irradiation) Fe launch of Au@FePt nanoparticles beneath numerous pH circumstances with and with out laser for twenty-four h (Extra file 1: Fig. S4).
A Temperature elevation curves of Au@FePt NPs (100 ppm) beneath completely different laser powers. B Temperature modifications curve of Au@FePt NPs (100 ppm) in several concentrations throughout 5 min laser irradiation at 1.2 W/cm2. C A number of heating cycles of Au@FePt NPs (100 ppm) (orange plot) and DI water (blue plot). D The connection between the primary cooling time and the detrimental pure logarithm of the temperature-driving power was calculated from Au@FePt nanoparticles. E In vitro T1 and T2 signal-to-background (SBR) of Au@FePt in several focus. F T1 and T2 SBR of Au@FePt nanoprobes incubated at numerous pH. G Methylene blue (MB) (10 μg/mL) degraded by ·OH generated from Au@FePt nanoprobes (Fe focus: 100 µg/mL) and completely different concentrations of H2O2 (0, 2, 4, 8, and 10 mM). H MB absorbance after incubation with Au@FePt nanoprobes on the manufacturing of ·OH, with gradient Fe concentrations (0, 10, 20, 40, 80, 100 μg/mL) and H2O2 (10 mM) was measured. I MB fluorescence spectra after incubation with numerous concentrations of Au@FePt nanoprobes (0, 10, 20, 40, 80, 100 μg/mL) and H2O2 (10 mM) had been measured
Responsive MRI sign of the Au@FePt NPs
The outcomes from Fig. 2E confirmed that the MRI sign was considerably extra delicate for detecting injected phantoms that are a optimistic T1-weighted imaging (T1WI) enhancer when releasing Fe2+. Furthermore, the paramagnetic Fe atoms that stay within the undissociated FePt probes are glorious detrimental T2WI distinction brokers (Fig. 2E), corresponding to a latest report, whereas the launched Fe2+ will be acted as a optimistic T1 WI distinction agent. Primarily based on 7.0 T MRI information, the T2-weighted leisure charge of Au@FePt was 79.361 s−1 and the T1-weighted leisure charge was 4.027 s−1, emphasizing the competence of the Au@FePt nanoprobe as T1/T2-weighted dual-mode MRI distinction agent, elevating the opportunity of a technique to exactly determine the tumor area to be detected [37]. When it comes to the MRI switching impact, the paramagnetic Fe atoms that stay within the undissociated Au@FePt are glorious detrimental T2WI distinction brokers, whereas the launched Fe2+ is a optimistic T1WI enhancer. As proven in Fig. 2F, the T2-signal-to-background (SBR) in a impartial situation (pH = 7.4) was 14.9, decrease T2-SBR values had been noticed when Au@FePt NPs had been uncovered to acidic circumstances, with values of 13.8, 13.3 and 10.64, decided at pH 6.5, 5.8, and 4.0, respectively.
In vitro check for Fenton response
When it comes to the Fenton response, H2O2 is transformed into extremely poisonous ·OH, which is catalyzed by Fe2+. The generated ·OH can effectively disrupt the important thing features of a most cancers cell and its buildings of biomolecules, corresponding to DNA, proteins, and lipids [47]. The methylene blue (MB) because the dye will be decolored by OH, which was utilized to disclose the ·OH technology capability of Au@FePt by way of a Fenton response [36]. Determine 2G confirmed that the absorbance of MB dramatically declined after therapy with Au@FePt nanoprobes (Fe focus: 100 µg/mL) and completely different concentrations of H2O2 (0, 2, 4, 8, and 10 mM) (100 μg/mL), indicating an H2O2-dependent ·OH technology. Moreover, MB absorbance within the Au@FePt resolution steadily decreased with rising Au@FePt focus (from 0 to 100 μg/mL), indicating a considerable amount of ·OH technology after the Fenton response from Fe2+ beneath acidic circumstances (Fig. 2H). Notably, the depth of the MB fluorescence steadily decreased because the Au@FePt focus elevated from 0 to 100 mg/mL (Fig. 2I). Total, the H2O2 concentration-dependent Fenton impact of Au@FePt might additional improve ·OH technology.
In vitro cytotoxicity assay of the Au@FePt NPs
The in vitro cytotoxicity of Au@FePt NPs with photothermal/radiation synergetic remedy towards 4T1 cells beneath completely different therapy instances was assessed by the usual CCK-8 assay. As proven in Fig. 3A, the cytotoxicity end result revealed that the Au@FePt + laser (1.2 W/cm2, 5 min) group’s cytotoxicity (1.2 W/cm2, 5 min) was 1.2 and a pair of.6-fold increased than that of Au@FePt teams at 24 and 48 h, respectively. As proven in Fig. 3A, the IC50 worth (i.e., the drug concentrations required to induce 50% cell loss of life inside a sure interval) of Au@FePt with out laser irradiation was 150 μg/mL and 109.7 μg/mL after 24 and 48 h of incubation, respectively. In comparison with the IC50 of Au@FePt receiving laser irradiation (108.9 μg/mL and 74.5 μg/mL) after 24 h and 48 h incubation, the cell viability of Au@FePt notably diminished, demonstrating that the AuNCs encapsulation of FePt exhibited increased cytotoxicity upon 1064 nm laser irradiation (1.2 W/cm2, 5 min). Apart from, the cytotoxicity was ranked as follows: Au@FePt + NIR + X-ray > Au@FePt + laser > Au@FePt + X-ray > Au@FePt in Fig. 3B. The info indicated that the Au@FePt with out laser and X-ray publicity revealed comparatively weaker cytotoxicity on most cancers cells. Remedy with Au@FePt beneath laser and X-ray publicity resulted in increased cytotoxicity in direction of 4T1 cells than Au@FePt + laser and Au@FePt + X-ray teams, indicating that gentle PTT and XDT induced increased cytotoxicity in most cancers cells, as proven in Fig. 3C. Movement cytometry was used to research the cell loss of life pathways of Au@FePt beneath numerous therapies in comparison with management teams after staining with an annexin V-FITC/PI equipment. Au@FePt with laser and X-ray had the strongest CDT capability beneath gentle PTT and will induce early apoptosis accompanied by secondary necrotic/late apoptosis (78.5%), in step with cell viability assay outcomes (Fig. 3C). The outcomes confirmed that the apoptotic charges of the PBS group, X ray, Au@FePt, Au@FePt + laser, Au@FePt + X rayand Au@FePt + X-ray teams had been ~ 0.1%, ~ 16.7%, ~ 24.7%, ~ 33.5, 72.5% and 78.2%, respectively (Fig. 3D), which had been just like these of the CCK8 assay.

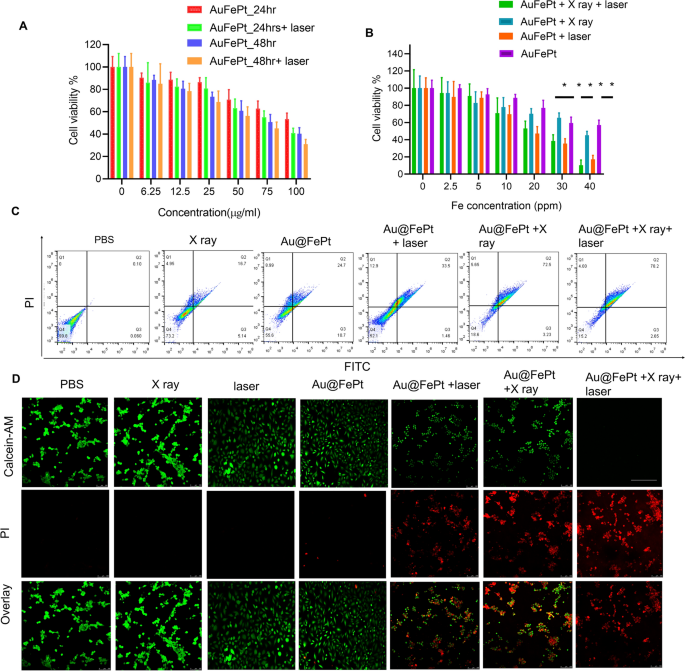

A The cell viability of 4T1 cells after therapy with completely different concentrations of Au@FePt for twenty-four h and 48 h (n = 5). B Cell viability check of Au@FePt and with and with out X-ray or laser irradiation for twenty-four h (n = 5). Knowledge characterize imply ± SD from three impartial experiments, every carried out in 5 replicates (*P < 0.05, **P < 0.01). C Movement cytometry analyses of cell apoptosis by Annexin V-FITC/PI co-staining of various therapy teams. D Calcein-AM/PI co-staining of 4T1 cells after the indicated therapies (inexperienced: reside cells; purple: useless cells) of assorted handled teams (scale bar = 100 μm)
As well as, the therapy impact was additional confirmed by the reside/useless cell staining assay was performed utilizing a calcein-AM/PI equipment to additional confirm the synergetic low-temperature PTT with XDT/CDT impact of Au@FePt. Beneath gentle irradiation for five min (1064 nm, 1.2 W/cm2), Au@FePt + laser and X-ray induced roughly 90% cell loss of life, which was in step with CCK8 outcomes (Fig. 3D). The cell imaging information demonstrated that the whole lot of the cell nuclei within the Au@FePt + laser + X-ray group had a robust PI sign associated to chromatin condensation, indicating that cell loss of life had occurred in comparison with the X-ray with or with out laser irradiation as proven above [48]. Though the killing effectivity of most cancers cells by way of Au@FePt was tremendously weakened with out X-ray therapy, the PTT and CDT results of Au@FePt NPs had been maintained, additional highlighting the necessary position of Au@FePt NPs in CDT-combined gentle PTT. Furthermore, with out the usage of a laser, fluorescence cell imaging revealed that the XDT/CDT consecutively broken the cell membrane and induced apoptosis within the Au@FePt + X-ray teams.
Transcriptomic signatures by means of RNA sequencing by Au@FePt therapy in breast most cancers
To judge the transcription profile in Au@FePt handled, the RNA sequencing evaluation of the 4T1 tumor mannequin with completely different therapies was carried out. The distribution of differentially expressed genes (DEGs) quantity between completely different teams was proven as a stacked-rose chart (Fig. 4A). Provided that the Au@FePt synergetic therapy resulted within the biggest change in DEG quantity when in comparison with different handled teams, we investigated the potential useful and mechanism pathways enriched within the Au@FePt + laser + X-ray group’s DEGs. The gene ontology (GO) enrichment evaluation confirmed that the DEGs expression of Au@FePt + laser + X-ray therapy was usually enriched within the organic processes, involving “Response to warmth”, “Warmth technology”, “Apoptosis course of”, “Regulation of iron transport, and “Constructive regulation of apoptosis” (Fig. 4B). Moreover, the Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment evaluation revealed a number of pathways associated to most cancers pathology that had been regulated by the AuFeT + laser + X-ray therapy (Fig. 4C). Moreover, a heatmap was plotted to depict the distinct expression patterns of 18 consultant DEGs amongst completely different handled teams (Fig. 4D). Up- and down-regulated genes in every group in contrast with these of the PBS had been set to GO enrichment evaluation. To additional characterize the relational hyperlinks of those consultant genes, a protein–protein interplay (PPI) community indicated the relational associations amongst encoded genes. The scale and shade of the rings characterize the significance of various genes within the PPI community. Ends in PPI point out the hub gene was TNF, which encodes the tumor necrosis factor-alpha that has been a important consider tackling breast most cancers (Fig. 4E). In-depth, to visualise relations between genes and pathways, we offer a Circos plot to depict the subordination of 32 consultant DEGs. The plot exhibits that the “cAMP signaling pathway” and “most cancers pathway” have the best variety of genes enriched. Moreover, different pathways, together with “MAPK signaling pathway,” “TNF signaling pathway,” “Apoptotic pathway,” “Pathway in cell loss of life,” “Ferroptosis pathway,” “Ras signaling pathway,” and “P53 signaling pathway” additionally participated within the gene expression change of Au@FePt + laser + X-ray therapy (Fig. 4F). To be temporary, an intensive variety of DEGs had been recognized after Au@FePt + laser + X-ray therapy, and Au@FePt + laser + X-ray might trigger transcriptional dysregulation and have an effect on oncogenic signaling in 4T1 tumor cells, particularly in apoptosis and ferroptosis. Bioinformatic outcomes revealed that biomineralization might tremendously inhibit most cancers development by disrupting the warmth technology course of and inducing cell cycle arrest, apoptosis, and ferroptosis.
RNA-seq and differentially expressed genes (DEGs) outcomes. RNA sequencing of 143B cells after therapy of regular saline as Management, Ca, DPA, or DPAC. A The panorama of up-and-down regulated DEGs quantity distributed between teams that evaluate with one another (PBS + laser vs Au@FePt + laser + X-ray, PBS + laser vs AuNCs + laser, AuNCs + laser vs Au@FePt + laser + X-ray). log2FC > 1.5 was outlined as upregulation (purple) and log2FC < − 1.5 was outlined as downregulation (gray-blue). The panorama of DEGs distribution between management (PBS therapy) and Au@FePt + laser + X-ray teams. Coloured factors characterize FDR < 0.05 (− log (FDR) ≥ 1.5, dashed line), log2FC > 1.5 upregulated genes (yellow) and log2FC < − 1.5 downregulated genes (purple). B GO enrichment evaluation of DEGs for the Au@FePt + laser + X-ray handled mice. A Fisher’s precise check displayed significance ranges (− log10 Q-value, measurement). The variety of genes enriched in every GO time period and the Q worth had been marked subsequent to every bar. C Bar plot displaying the highest 19 enriched KEGG pathways for DEGs within the Au@FePt + laser + X-ray handled mice. The variety of genes enriched in every pathway and the Q worth was marked subsequent to every bar. KEGG pathway evaluation of from Au@FePt + laser + X-ray handled mice and PBS handled glioblastoma. enriched p38 mitogen-activated protein kinase (MAPK) signaling pathway and tumor necrosis issue (TNF) signaling pathway. D A heatmap exhibits apoptosis/ferroptosis-related differentially expressed genes between therapies. Colour depth represents the diploma of expression worth of this gene after standardized therapy in every pattern. Relative expression ranges are proven in purple (up-regulation) and blue (down-regulation). E PPI community demonstrating particular gene interplay pathways derived from consultant DEGs, and yellow nodes represented the areas of a hub node. PPI community consists of particular genes encoded by consultant DEGs. F The Circos plot visualizes important associations between 32 consultant DEGs and KEGG pathways in a special shade. Icons marked the 15 cancer-relative KEGG pathways enriched by consultant DEGs
Intracellular ROS technology
To disclose the in vitro therapeutic efficacy, the promising benefit of AuNCs loaded FePt was attributed to cell internalization on the tumor microenvironment for exactly enhanced apoptosis/ferroptosis results in breast most cancers. The technology of Fe2+ was verified utilizing the Ferro Orange fluorescence staining assay, whose fluorescence depth elevated because the Fe2+ was enriched within the cells. Au@FePt NPs handled 4T1 most cancers cells (+NIR-II laser irradiation) demonstrated an enhanced fluorescence sign than the Au@FePt and PBS group (Fig. 5A), indicating that co-incubation with laser enhanced the Fe2+focus in 4T1 cells. Apart from, the BODIPY581/591-C11 probe was added to detect the LPO degree within the 4T1 cell. Fer-1 (a ferroptosis inhibitor) was added to 4T1 cells previous to the BODIPY581/591-C11 assay to immediately examine the LPO impact on Au@FePt + laser + X-ray-induced cell loss of life. In Fig. 5B, the Au@FePt with laser plus X-ray radiation group revealed the strongest inexperienced fluorescence, adopted by the Au@FePt + laser, Au@FePt + X ray, and PBS teams as proven in Fig. 5B. The cell photographs end result demonstrated that the Au@FePt gentle PTT plus X-ray radiation group produces a large amount of LPO, which was mixed with the ROS manufacturing and GPX4 depletion end result [35].
A Fe2+ fluorescence staining with out and with FePt nanoprobes therapy in 4T1 cells (scale bar: 50 μm). B Fluorescence photographs of lipid peroxide in 4T1 cells after therapy with PBS, FePt-Fer-1, Au@FePt + NIR, and Au@FePt + NIR + X-ray (scale bar: 50 μm). C Intracellular ROS technology was detected by the DCFH-DA probe after numerous therapies in 4T1 cells (Fe focus: 5 mM, X-ray: 4 Gy) (scale bar: 50 μm) (*P < 0.05, **P < 0.01). D Western blot evaluation of apoptosis-associated proteins after 48 h therapy inside completely different nanoprobe-incubated cells. E, F Quantitative measurement of apoptosis-associated proteins in several nanoprobe-incubated cells throughout western blot imaging course of (n = 3)
To research the improved ROS technology capability of the Au@FePt nanoprobe, the change in oxidative stress was investigated utilizing DCFH-DA as a ROS sensor probe, which will be oxidized by ROS into 2′,7′-dichlorofuorescein (DCF), a inexperienced fluorescence-emitting molecule. As illustrated in Fig. 5C, to imitate the tumor microenvironment overexpressing H2O2, 4T1 cells had been incubated with H2O2 whereas present process completely different therapies. In contrast with the PBS group, Au@FePt-treated 4T1 cells exhibited a certain quantity of inexperienced fluorescence, indicating that ROS technology was detected, revealing that Fe2+ launched from Au@FePt undergoes a Fenton response within the presence of H2O2 to play a task in CDT. Nonetheless, within the presence of Fer-1, Au@FePt-treated cells exhibited extraordinarily low fluorescence indicators, indicating that Fer-1 inhibited the operate of Fe2+and additional illustrating that it’s the Fe2+ in Au@FePt that performs a task in ROS technology. Au@FePt-treated cells confirmed the best fluorescence sign after publicity to gentle PTT and X-ray radiation, indicating essentially the most ROS technology, which illustrated the wonderful mixed CDT/PTT/XRT therapeutic impact of the nanoprobe. Ferroptosis acts as one of many typical RCD primarily based on Fe-dependent oxidative injury and is induced by the discount of glutathione peroxidase 4 (GPX4). Down-regulation of GPX4 would end result within the formation of lipid peroxide (LPO) in most cancers cells.
Activated apoptosis and ferroptosis by means of syngenetic remedy
To look at the cell loss of life mechanism, a western blot was employed to watch the cell loss of life pathway upon syngenetic remedy, which signifies the most cancers cell pathway by way of quantitative in situ activation of intracellular apoptosis/ferroptosis-related proteins. Total, the above outcomes strongly confirmed that Au@FePt + laser + X-ray handled cells might inhibit autophagy in most cancers cells, thus sensitizing the Au@FePt-mediated PTT and CDT-mediated syngenetic therapeutic impact.
The RCD mechanism by way of numerous protein markers of apoptosis was additional assessed by western blot, together with caspase-3, cleaved caspase 3 and cleaved poly (ADP-ribose) polymerase (PARP) [49]. The western blot outcomes revealed that Au@FePt-induced XDT/CDT/PTT upon laser irradiation therapy up-regulated the expression of caspase-3 (Fig. 5D). To disclose the detailed cell loss of life mechanism of various therapies through the bidirectional crosstalk between apoptosis and ferroptosis, we examine the apoptosis habits with NIR-II laser irradiation or with X-ray in numerous teams. Apoptosis was assessed by caspase 3, cleaved caspase-3, and cleaved poly (ADP-ribose) polymerase (PARP). As proven in Fig. 5E, F, the Au@FePt receiving laser with X-ray exhibited a better apoptosis charge than different teams, corresponding to Au@FePt + laser and Au@FePt + X-ray and PBS management group. Subsequently, PARP-1 was cleaved to characterize a sign of apoptosis as proven in Fig. 5F. These outcomes demonstrated that each intrinsic and extrinsic apoptotic pathways had been activated by the synergistic photothermal and enhanced chemotherapy therapies [42, 43, 50].
In vivo MRI and PA imaging
To disclose the in vivo focusing on capability of Au@FePt, the FePt and AuNCs NPs (10 mg/kg) had been administrated by way of tail vein into orthotopic 4T1 tumor-bearing mice. Vevo 2100 photoacoustic system was used to look at the photoacoustic picture and sign modifications. These PA overlay ultrasound photographs demonstrated an area distribution of the Au@FePt over 24 h. The PA photographs revealed that the tumor was lightened after injection of Au@FePt nanoprobes at 6 h post-injection which then began to say no and returned to the pre-injection degree on the finish, whereas the PBS management group exhibited minor PA sign change throughout the complete interval. The PA sign within the breast most cancers website of Au@FePt-treated mice elevated over time and reached its highest degree after 6 h post-injection, which achieved a 2.8-fold PA sign enhancement over AuNCs and FePt at 6 h (Fig. 6A). The elevated native focus of Au@FePt in a tumor at the moment level revealed the affiliation between the endothelial cells primarily based on αvβ3 integrin which is extremely expressed within the anagenesis of the vascular construction ensuing within the nanoparticle focusing on the tumor website immediately. The creation of a leaky vasculature, which was characterised as elevated blood movement across the tumor, might have contributed to the hypoxic core that was seen.The sign from focused Au@FePt will be deconvoluted by way of PA multispectral scanning with particular absorption spectra for HbO2 and Hb within the tumor area (Fig. 6B–E) [51]. Following intravenous supply, the photoacoustic intensities elevated by an element of two.1, revealing the potential of Au@FePt NPs as succesful photoacoustic distinction brokers for tumor imaging (Fig. 6F).
Monitoring completely different nanoprobe accumulation with photoacoustic imaging. A Warmth map of NP accumulation in tumors in PA-US overlay photographs respectively with completely different nanoprobe into mice bearing 4T1 tumors after 0 h, 2 h, 6 h, 8 h and 24 h (n = 3). B In vivo ultrasound picture of a subcutaneous implanted 4T1 tumor. C Warmth map of PA indicators from focused nanoprobe injected in mice implanted with 4T1 tumor (inexperienced). D Warmth map of oxygenated hemoglobin (purple) and deoxygenated hemoglobin (blue) of the identical 4T1 tumor. E Overlaid with ultrasound picture and focused nanoprobe, oxygenated hemoglobin, and deoxygenated hemoglobin PA indicators. F Common PA depth increment at 850 nm as a operate post-injection time with completely different nanoprobe into mice bearing 4T1 tumors after 0 h, 2 h, 4 h, 6 h, 8 h, 24 h, and 48 h (n = 3). Error bars characterize customary deviation. *p < 0.05. G In vivo T1WI and T2WI of 4T1 tumors at numerous time factors after intravenous injection of Au@FePt nanoprobe and FePt nanoprobe
Twin imaging with PAI mixed with MRI exhibited superiority each in morphological and useful imaging. Moreover, the efficiency of Au@FePt NPs as distinction brokers for dual-mode in vivo tumor imaging was investigated. Herein, the pictures of T1-weighted and T2-weighted 4T1 tumor-bearing mice had been recorded, and the corresponding sign at completely different time factors was measured. As proven in Fig. 6G, earlier ex vivo MRI switching information revealed that in Au@FePt corrosion, the comfort charge modified from T2 to T1 in an acidic situation. Due to this fact, the equivalent sections of breast tumor-bearing animals had been imaged utilizing T1 and T2 weighting, and the signal-to-background ratios (SBRs) at numerous time intervals had been computed. After intravenous injection of Au@FePt nanoprobes, the tumors solely confirmed an elevated T1WI sign at tumor areas, indicating Fe2+ launch on the tumor websites. Apart from, tumor areas confirmed detrimental T2WI enhancement, which is regarded as an indication that Au@FePt have been retained in these tumors. After calculating the ratios of T1 SBR and T2 SBR, it was found that the ratio considerably elevated for 2 hours after injection (Extra file 1: Fig. S7A–C). Apart from, for the FePt (2 mg/mL for Fept; 200 µL) as non-targeted group was administered to the mice bearing 4T1 by means of the tail vein and imaged repeatedly for two days, each 2 h per picture. The outcomes indicated that focused (Au@FePt) present excessive uptake within the tumor website after tail vein injection in comparison with the FePt group (Extra file 1: Fig. S7D–F). Total, the Au@FePt can improve optimistic T1/detrimental T2 distinction in MRI and mix with the brand new imaging know-how of photoacoustic imaging to supply a excessive tumor imaging distinction to make sure enough imaging sensitivity. Moreover, PEG-modified phospholipid bilayer shell launch of Au@FePt in a pH-sensitive method supplies in situ tumor focusing on and achieves the gentle photothermal/radiation synergetic remedy impact of potentiating ferroptosis impact. In contrast with conventional strategies, multifunctional nanoparticles have benefits that may notice dual-modal new imaging and multi-process synergistic remedy.
In vivo therapeutic efficacy of Au@FePt by means of mixed synergetic remedy
To disclose the anti-tumor efficacy for various therapy teams, the in vivo therapy technique of the orthotopic breast tumor mannequin was noticed in Fig. 7A. For synergistic therapy teams as proven in Fig. 7B, the mice had been additionally injected with Au@FePt (dose: 10 mg/kg) after which irradiated with a NIR laser at 1064 nm with 1.2 W/cm2 for five min at 6 h post-injection, and the IR thermal digicam recording for the breast most cancers website confirmed a dramatically rising temperature over time. The temperature shortly rose to 44.5 °C after which remained fixed at 45.8 °C for five min after 1064 nm laser publicity for the Au@FePt handled group (Fig. 7B). Subsequently, mice had been injected with AuNCs (10 mg/kg primarily based on the burden of Au focus) and FePt (5 mg/kg primarily based on the burden of Fe focus) and irradiated with laser gentle 6 h after the injection, respectively. The AuNCs handled group additionally strengthened the PTT impact whereas the FePt handled group displayed a average temperature come up to 32 °C. Nonetheless, after 5 min of laser irradiation, the PBS management group barely modified temperature (from 26 to 32 °C) on the tumor website as proven in (Fig. 7C). The change within the tumor quantity curve and every tumor photograph for every group are illustrated in Fig. 7D, E and Extra file 1: Fig. S5, respectively. The numerous tumor accumulation of Au@FePt + laser demonstrated superior anti-tumor efficacy, which was attributed to the AuNCs supply system’s extraordinary heat-generating capability. As anticipated, therapy with the Au@FePt NPs + X-ray + laser resulted in a wonderful therapeutic impact in inhibiting tumor development, demonstrating the XDT/CDT/PTT mixture remedy impact. Compared, the 4T1 tumors had been injected with an equal quantity of PBS dispersion, and the scale of the tumor development was sooner and uncontrolled.
In vivo XDT/CDT/PTT remedy of the 4T1 tumor-bearing mice after injection of PBS, Au@FePt with and with out laser irradiation or X-ray after 6 h of injection (5 mg/kg, 1.2 W/cm2). A Schedule of therapeutic and evaluation. B Thermal photographs and C corresponding temperature modifications of tumor website of PBS, Au@FePt with and with out laser irradiation after 6 h post-injection (n = 4). D Pictures of the tumor systematically administrated after PBS, Au@FePt and Au@Fept + X ray, Au@FePt + laser (1.2 W/cm2) and Au@FePt + laser + X-ray (n = 4). E Relative tumor-growth curve. Insert the images of related tumors originating from every group in D. F Physique weight after numerous therapies indicated in 21 days (n = 4). G, H Survival curve and organ effectivity of tumor-bearing mice handled by numerous teams throughout 42 days (n = 4)
Additionally, there was no important physique weight variation after injection of PBS, Au@FePt, Au@FePt + laser, Au@FePt + X-ray and Au@FePt + laser + X-ray beneath laser irradiation and X-ray therapy as illustrated in Fig. 7F. Determine 7G additionally revealed the change in organ effectivity of every organ within the completely different therapy teams over 21 days. This end result demonstrated important tumor inhibition in 4T1 tumor-bearing mice injected with Au@FePt NPs with synergistic therapy. Kaplan–Meier survival curves had been used to evaluate therapeutic efficacy. The survival curve was measured every single day for as much as 3 weeks as indicated in Fig. 7H. When in comparison with Au@FePt NPs + X-ray or Au@FePt + laser teams, wherein most cancers grew at a average pace because of the single impact of gentle PTT with XDT/CDT/PTT in most cancers cells to inhibit tumor angiogenesis, the upper survival charge of the Au@FePt + laser + X-ray handled group might be attributed to synergistic therapies that induce irritation with DNA injury in RCD, thereby downregulating caspase expression within the hypoxic tumor microenvironment by way of twin induction of ferroptosis and apoptosis [27].
To additional reveal ferroptosis phenomena, an immunohistochemical examination of tumor sections taken from the handled animals was carried out. As proven in Fig. 8A, each Au@FePt-treated teams uncovered to an NIR laser and X ray irradiation had increased ROS ranges. A better diploma of oxidative stress was noticed within the mice that had been administered Au@FePt + laser + X-ray than in those who had been administered Au@FePt + X ray and Au@FePt + laser. Moreover, as proven in Fig. 8B, the mice handled with Au@FePt + NIR + X-ray produced intratumoral 4-hydroxynonenal (4-HNE), a big class of reactive lipid species, indicating that lipid peroxidation contributes to tumor cell loss of life [52]. Earlier analysis indicated that beneath oxidative stress, corresponding to radiation, the surplus of free radicals results in lipid peroxidation which confirmed the involvement of 4-HNE in tumor cell loss of life [53].
Intratumoral manufacturing of A ROS and B 4-HNE obtained from tumor tissue slices of mice receiving completely different therapies group. Mice had been sacrificed and tumors had been dissected at 24 h post-irradiation. Scale bar: 50 µm for immunofluorescence photographs and 50 µm for H&E staining photographs. C Intratumoral manufacturing of GPX4 exercise measurement. Knowledge characterize the imply (± customary deviation, SD) of three impartial experiments
These pathological modifications had been accompanied by decreased GPX4 exercise, which hyperlinks ferroptosis to the operate of key tumor suppressor pathways (Fig. 8C). Collectively, Au@FePt + laser + X-ray resulted in enough intratumoral GPX4 inactivation in addition to subsequent lipid peroxidation, main to finish tumor eradication. Thus, the usage of Au@FePt + laser + X-ray is a promising therapeutic technique for the ablation of breast most cancers. A sure portion of tumor cell loss of life by way of the ferroptosis/apoptosis pathway was noticed for teams of Au@FePt + laser + X-ray, whereas management teams (PBS + laser) revealed no hostile impact on the tumor cell injury (Extra file 1: Fig. S6). Furthermore, an IHC assay with CD31, HIF-1α, and PNAC staining and an immunofluorescent examine of tumor tissues had been carried out (Extra file 1: Fig. S8). Obvious shrinkage of cell morphology and breakdown of tumor tissue had been seen within the Au@FePt + laser + X-ray group in contrast with the PBS + laser group, indicating an efficient tumor suppression impact. In response to IHC assays with CD31 and PCNA staining, tumor angiogenesis and most cancers cell proliferation had been considerably decreased within the Au@FePt + laser + X-ray group. Moreover, the Au@FePt + laser + X-ray group had a excessive share of TUNEL nuclei, implying that apoptosis and ferroptosis might provoke the first pathways of mixed gentle PTT with CDT and XDT, finally resulting in cell loss of life. PBS as a management group revealed the obvious formation of latest blood vessels. TUNEL staining of Au@FePt + laser + X-ray therapy reveals t extra apoptotic cells than the Au@FePt + laser group and Au@FePt + X ray. The distinguished PTT improved therapeutic final result with the Au@FePt + laser + X-ray together with laser irradiation and X-ray radiation, which holds nice promise as an efficient anti-tumor agent for in vivo tumor remedy.
Biosafety check and blood evaluation
The biosafety check was assessed by way of H&E staining assay for all nanoprobes within the handled group, and the end result revealed no apparent acute toxicity (Extra file 1: Fig. S9). We additionally examined the biosafety check by way of blood evaluation. The blood chemical indices together with alanine aminotransferase (ALT), aspartate aminotransferase (AST), blood urea nitrogen (BUN), plasma uric acid (UA), blood glucose (GLU), and low-density lipoprotein ldl cholesterol (LDL-C) ranges had been measured and revealed no apparent acute toxicity (Extra file 1: Fig. S10).
