When designing fish-like underwater robots, you need a technique of propulsion which is each energy-efficient and fairly speedy. A brand new tail-flapping system might match the invoice, paving the best way for wider utilization of such bots.
The experimental setup has been integrated right into a robotic fish constructed by a group of scientists on the College of Bristol, led by PhD scholar Tsam Lung You. It makes use of a modified model of a mechanism referred to as a twisted and coiled polymer (TCP).
In a nutshell, TCPs take the type of a coiled line, not not like a landline phone’s handset twine. When the road is heated it coils tighter, contracting like a muscle. When the warmth is eliminated the road relaxes once more, returning to its default size.
One limitation of such gadgets lies in the truth that they cannot produce repetitive actions in a short time, because it takes at the very least a second or so earlier than they’ll contract once more. The robotic fish addresses that downside.

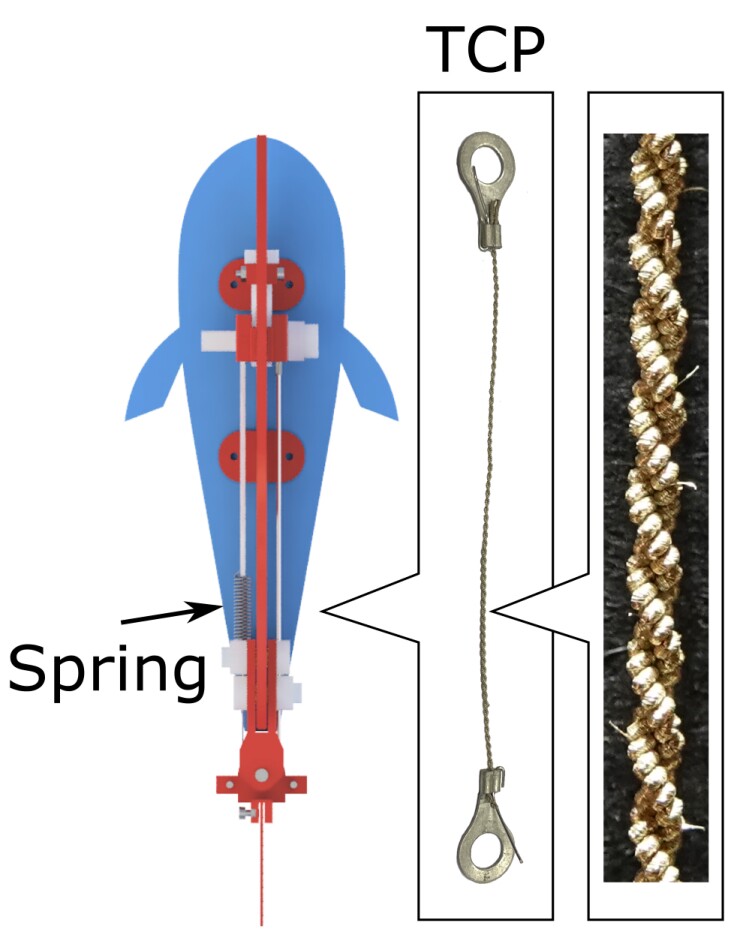

![An overview of the robot's TCP-spring propulsion system](https://assets.newatlas.com/dims4/default/a99ad78/2147483647/strip/true/crop/740x947+0+0/resize/740x947!/quality/90/?url=http%3A%2F%2Fnewatlas-brightspot.s3.amazonaws.com%2F87%2F4c%2F4c17e96949c7b48b8d5fd4e6bb45%2Fantagonistic-muscles.jpeg)
Tsam Lung You
It incorporates each a conductive-yarn TCP and a traditional metal coil spring, which lie side-by-side alongside the size of the robotic. They’re related to reverse sides of a tail-flapping mechanism on the rear finish of the bot, and are related to at least one one other through a linkage on the entrance.
When {an electrical} present is utilized to the TCP it heats up and contracts, concurrently pulling the tail to at least one aspect and stretching the coil spring. When the present ceases and the TCP relaxes, the stretched spring contracts, pulling the tail to the opposite aspect. By the point the tail has completed going to that aspect, the TCP is able to contract and pull it again once more.

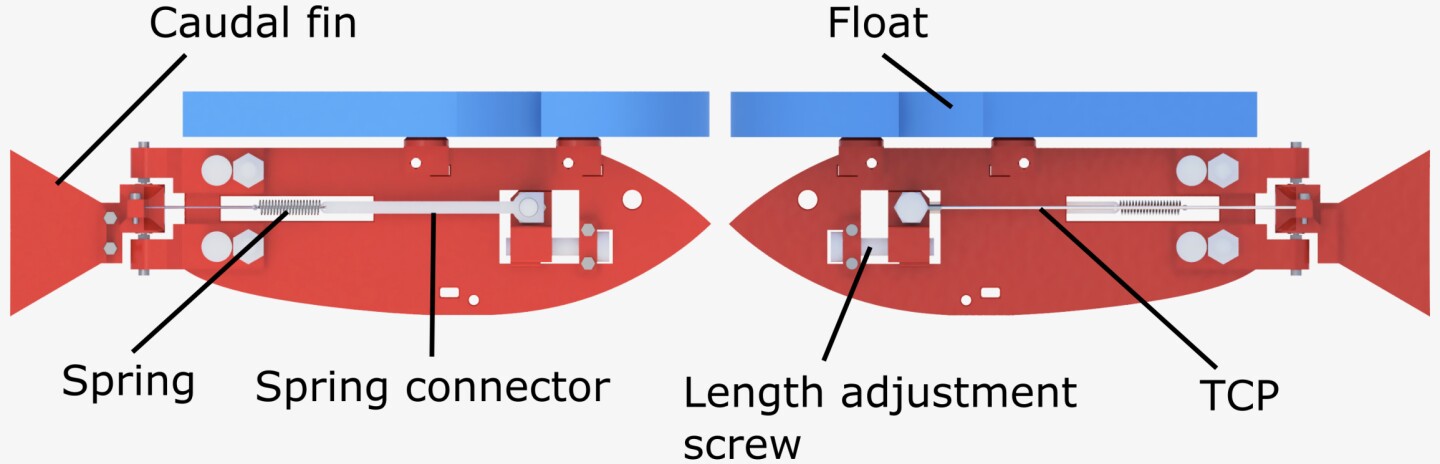

![The different components of the system](https://assets.newatlas.com/dims4/default/9d67e97/2147483647/strip/true/crop/2310x744+0+0/resize/1440x464!/quality/90/?url=http%3A%2F%2Fnewatlas-brightspot.s3.amazonaws.com%2F97%2F05%2Fe63e108b487f8980efe9abe808dd%2Ffish-side-view.jpeg)
Tsam Lung You
In water tank assessments, the robotic was capable of swim at a tail-flapping price of two waves per second. The scientists at the moment are incorporating the know-how right into a extra agile robotic knifefish, which has an auger-like fin that runs alongside the size of its underside.
“Our robotic fish swam on the quickest actuation frequency present in an actual TCP utility and likewise the very best locomotion pace of a TCP utility to date,” stated You. “That is actually thrilling because it opens up extra alternatives of TCP utility in several areas.”
A paper on the analysis was offered earlier this month on the sixth IEEE-RAS Worldwide Convention on Comfortable Robotics, in Singapore. The robotic could be seen in motion, within the video beneath.
TCP-propelled robotic fish
Supply: College of Bristol
