Electronics and communications engineer Guillermo Perez Guillen has penned a information to turning a Raspberry Pi single-board laptop (SBC) right into a low-cost spectrometer — together with an instance of utilizing a near-infrared variant to mechanically examine plant well being.
“Spectrophotometry is the quantitative measurement of the interplay of ultraviolet (UV), seen, and infrared (IR) radiation with a cloth and has an impression on a large discipline of science and know-how,” Guillen explains of the science behind the undertaking. “Spectrophotometry makes use of photometers, often known as spectrometers, that may measure the depth of a light-weight beam at completely different wavelengths.”
Lab-grade spectrometers are, as you’d count on, not the most cost effective gadgets on this planet — which was sufficient inspiration for Guillen to place collectively a information to constructing an open supply various, powered by a Raspberry Pi 3 Mannequin B+ or Raspberry Pi 4 Mannequin B single-board laptop and, in its preliminary incarnation, an AMS AS7262 Spectral Sensing Engine six-channel visible-light sensor.

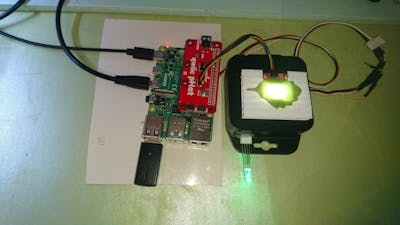

The {hardware} is easy sufficient: the Raspberry Pi is related to a SparkFun Qwiic pHAT add-on, which is in flip related to a SparkFun AS7262 breakout board. MDF is used to construct a body for the sensor breakout, with a purpose to reduce environmental gentle which might throw off its readings. To show the idea, Guillen’s first experiment used coloured filter strips with a cold-white flashlight to change the sunshine readings and print the lead to bar graphs — then moved to measuring the output of an RGB LED.
Guillen’s experiments then transfer into the realm of research, studying the sunshine which passes via containers of chamomile tea, hibiscus tea, and occasional, displaying how the readings differ — and will thus be used to distinguish between the three. Lastly, Guillen connects the machine to the Web of Issues (IoT) and swaps the sensor out for an AS7263 near-infrared (NIR) equal — utilizing it to watch the well being of plant leaves utilizing the normalized vegetation distinction index (NVDI).
“The wholesome leaves gave NDVI values between 0.2 and 0.35,” Guillen explains; “the semi-dry leaf gave NDVI values between 0.4 and 0.5 in its inexperienced space; and the dried leaves gave NDVI values between 0.66 and 0.75 approx. An vital suggestion is that the exams ought to be carried out in a light-weight managed setting comparable the one I did. These exams can’t be carried out open air as a result of sturdy photo voltaic radiation.”
Guillen’s full write-up is offered on his Hackaday.io web page, whereas the supply code has been printed on GitHub beneath the permissive MIT license.
