Hoverboards are literally fairly superb when you concentrate on it. These of us who bear in mind the discharge of the Segway and the immense hype that it generated can see that. Segways have been wildly costly, which was a part of the explanation they did not see widespread adoption. However hoverboards are low-cost — you may get one on Amazon for about $100 proper now. That is spectacular if you perceive how a lot know-how and {hardware} they embody. James Bruton took benefit of that {hardware} to construct a really attention-grabbing omni wheel bicycle.
Like a Segway and most different balancing robots and automobiles, hoverboards work by controlling inertia. If the rider suggestions too far ahead, the hoverboard accelerates ahead and the inertia of the rider’s mass retains them upright till they’re balancing once more. To allow steering, the hoverboard’s two wheels have to work independently with a joint between them. The {hardware} to attain that features a controller on all sides that has a gyroscope, an IMU (inertial measurement unit), and a motor driver. These management motors which are fairly highly effective. That’s fairly a little bit of helpful {hardware} for such an inexpensive automobile and it gave Bruton most of what he wanted for his omni wheel bike.

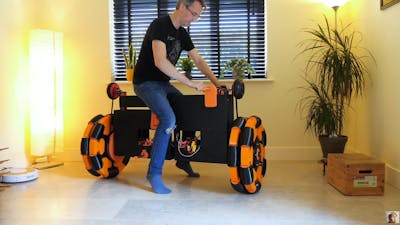

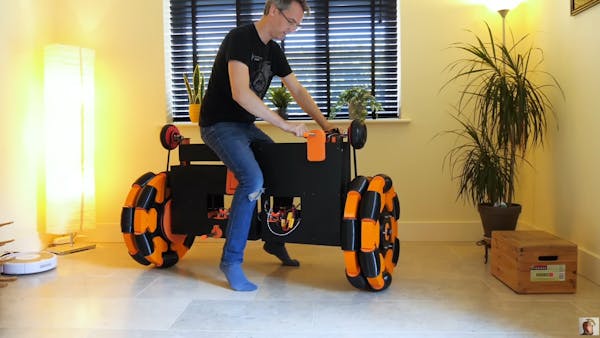

This bike has an omni wheel at every finish, oriented perpendicular to the conventional route of journey. As a result of the 3D-printed omni wheels have free-spinning rollers, the bike can roll ahead or backward with none resistance past friction. However the omni wheels are powered by the hoverboard motors beneath the steerage of the hoverboard’s controllers. So if the bike suggestions, the motors will flip and preserve the rider upright. The bike may also rotate or drive side-to-side when the rider shifts their weight. The bike has two halves that pivot relative to one another, so the rider can manipulate their angle independently.
Bruton constructed this bike utilizing 3D-printed elements and plywood. The body is generally plywood, whereas the wheels are a mixture of the 2 supplies. The deal with has a lifeless man’s swap that disconnects energy if the rider falls off, which is a considerate security measure. Apart from an upgraded battery pack and the ability disconnector, all the digital parts got here from the hoverboard.
There have been a few points with this preliminary prototype. Bruton needed to shim the controller boards to mount them at what they thought of to be degree — which was truly barely off-level. And the split-frame design proved to be unwieldy and tough to manage. Bruton additionally does not clarify how he intends to make the bike transfer ahead. However that is simply artwork 1 of the mission, so we anticipate that query to get a solution partially 2.
