- A turbulence modelling approach reshapes how huge constructions work together with the pure dance of the wind.
- A recent wave of precision fueled by the newest expertise marks a paradigm shift into an period the place accuracy reaches unprecedented heights.
In a stride towards extra correct constructing design, Danish firm Vind-Vind has launched an modern turbulence modelling approach that guarantees to reshape how massive constructions work together with pure wind circumstances. Typical strategies of developing sizable edifices depend on scale fashions examined inside wind tunnels. These simulations typically fall brief in estimating peak masses, necessitating security buffers.
The corporate’s strategy stems from recognising the constraints of unidirectional wind tunnel testing, which fails to copy real-world eventualities involving multidirectional gusts and eddies. To handle these shortcomings, the corporate has a turbulence mannequin leveraging real-world knowledge gathered by a Gentle Detection and Ranging (LIDAR)system using 10 ns pulses. The emitted laser is mirrored off airborne particles, with Doppler effect-induced alterations within the returned gentle meticulously analysed utilizing Spectrum Instrumentation’s state-of-the-art M5i.3321 digitiser card.
CEO Per Jørgensen stated, “At the moment, wind motion is gauged utilizing both low-resolution knowledge masking a number of kilometres or high-resolution measurements restricted to some hundred meters. Our LIDAR-based instrument excels in capturing high-resolution knowledge throughout in depth distances.” Spectrum’s digitiser card is central to this innovation, boasting an l 3.2 GigaSamples per second sampling fee and 12-bit decision. This bandwidth accommodates fluctuating circumstances and faint indicators whereas facilitating noise discount throughout knowledge processing.
Coping with the copious knowledge generated by monitoring quite a few wind-blown particles demanded an ingenious resolution. Whereas initially considering area programmable gate array (FPGA), the corporate deemed the programming complexity and inadequate computational energy unsuitable. Their quandary was resolved with Spectrum’s SCAPP drivers (Spectrum’s CUDA entry for parallel processing). The M5i digitiser, geared up with a 16-lane peripheral part interconnect specific (PCIe) interface, channels knowledge—as much as a staggering 12.8 GigaBytes per second—to a CUDA-based graphics card, sidestepping the PC’s CPU. The Nvidia Quadro A4000 graphics card, housing 6,144 cores, outpaces typical CPUs with a mere 6 or 8 cores.

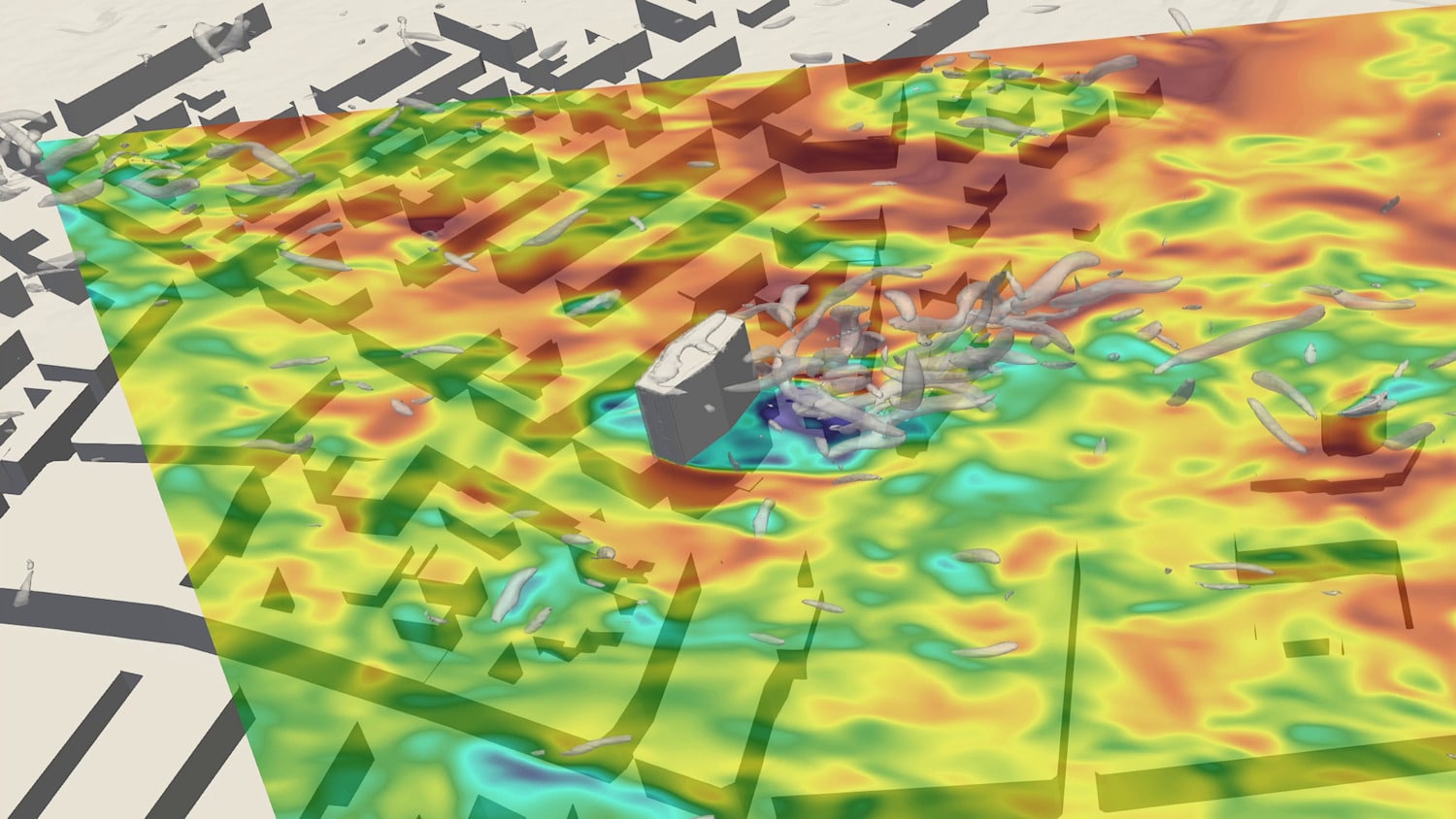

The corporate’s foremost goal entails scrutinizing turbulence congruence between measured and computer-simulated city environments. Subsequent enhancements will embody larger atmospheric ranges, incorporating numerous wind gusts. Actual-world knowledge validation will in the end underpin the accuracy of their 3D wind modeling, proving instrumental in heightening security, wind consolation, and sustainability whereas mitigating extra materials utilization attributable to inaccuracies in wind tunnel modeling.
Jørgensen enthused, “Our 3D wind modeling, grounded in confirmed accuracy, forecasts the intricate realities of the pure world, departing from the confined wind tunnel paradigm. This transformation stands to curtail architects’ overcompensation, fostering sustainability and value financial savings by optimizing useful resource utilization.” They envisions their mannequin’s applicability in eventualities the place conventional wind tunnel assessments falter—like intricate atmospheric interactions in city environments, wind turbine clusters, bridges, and airports. This leap certainly heralds a brand new period in architectural and engineering precision.
