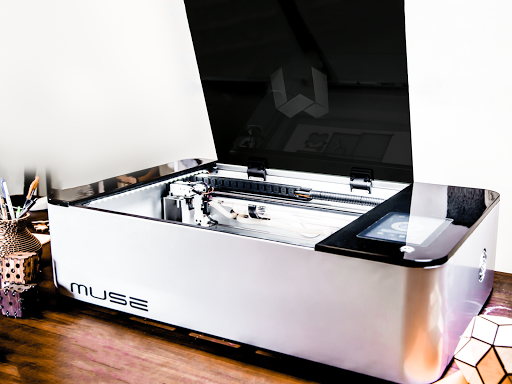

The FSL Muse laser cutter and engraver is a superb, highly effective addition to any private or enterprise workflow with its simple to make use of software program.
Posted on January 23, 2019
by
Chris Morgan
Full Spectrum Laser (FSL) has been within the enterprise of producing sturdy, highly effective slicing and engraving tools for years. Their ‘everyman’ model of the standard laser cutter and engraver provides any consumer the flexibility to chop or engrave new supplies like leather-based, fabric, wooden, delicate metals and acrylic with ease.
Options
- Highly effective 40 watt CO2 laser
- Easy, browser primarily based software program
- Distant monitoring and performance
- Constructed-in digicam for aligning design with materials in actual time
- Patented, detachable ground to work on bigger surfaces
Highly effective 40 Watt CO2 Laser
The laser that’s included with the Muse packs a typical 40 watt laser into it’s smooth bundle. The laser is able to slicing and engraving many supplies as much as and together with:
- ¼” Wooden (Lower/Engrave)
- ¼” Acrylic (Lower/Engrave)
- Cloth (Lower/Engrave)
- Cardboard (Lower/Engrave)
- Paper (Lower/Engrave)
- Pure Leather-based (Lower/Engrave)
- Stone (Engrave solely)
- Glass (Engrave solely)
- Rubber (Lower/Engrave)
If 40 watts isn’t sufficient, the laser is upgradable to 45 watts as properly. With both laser possibility, you continue to have 1000 dpi decision and the flexibility to chop a lot of the “Lower” supplies above as much as ¼”. Non-obligatory equipment additionally provide the capability to engrave on curved surfaces with the Rotary attachment, or bigger objects with the Riser improve.
Browser Primarily based Software program, Retina Engrave 3 (RE3)
The included Retina Engrave 3 software program lives on the Muse, and is accessible through an internet browser. All it’s essential do is community the Muse and enter the IP deal with, and every thing is true there ready for you within the browser. There’s completely nothing to obtain, simply open your most popular internet browser and also you’re good to go. You even have the choice to regulate settings instantly on the Muse by means of its smooth and easy-to-use touchscreen interface. You’ll be able to monitor, change and management settings instantly by means of the touchscreen.
Distant Monitoring with Constructed-In Digital camera
The digicam on the Muse might be managed to take a ‘pre-job’ image of the work floor, so you may simply line up your job onto the picture offered within the browser. No extra guess work questioning in case your design traces up with the fabric – see it and management it in actual time. Whereas the job is operating, you will get a real-time estimate of time remaining in your job, in addition to see the progress of the rasters, cuts and embossings.
Detachable Ground to Work on Bigger Jobs
The patented, detachable ground of the Muse provides you entry to bigger, extra intricate jobs than ever earlier than. With the detachable ground, you basically get an infinite work space; align the design to the subsequent step and press go – you may realistically engrave your hardwood eating room ground if that’s what you want.
Technical Specs
- Engraving Space: 20” x 12” (508mm x 305mm)
- Machine Dimensions: 37″ x 27.5″ x 35.375″ (939.8mm x 698mm x 898.525mm)
- Weight: 54 lbs (24.5 kg)
- Z Top: 2.5″
Laser
- Laser Classification: Class 3
- Laser Sort: Sealed CO2 Laser Tube
- Laser Energy: 40W
- Focus Lens: 2″
- Built-in Purple Guiding Laser and Beam Combiner
- Decision: As much as 1000 dpi
Energy
- Energy Provide: AC 110V native (220V possibility obtainable)
- Gross Energy: <1000W
System
- Operation Modes: Precision raster, vector or mixed modes
- Movement Management: Excessive-Pace Stepper Motors
- Working Temperature: 0C – 45C
Software program
- Software program: RetinaEngrave v3.0
- Compatibility: PC, Mac & Linux
Apple® macOS® X v10.9 or later (Mavericks)
Microsoft® Home windows® 10
Microsoft® Home windows® 8.1
Microsoft® Home windows® 7 SP1 - Browser Compatibility: Google Chrome (really useful), Safari, Firefox, Edge, & Web Explorer
- Min Display Decision: 1024 x 768 Pixels
- Potential to Join By Community (Ethernet or Wi-fi) with out Web Connection
- Wi-fi Connection Frequency: 2.4 GHz
Included Tools
- 40W or 45W Laser Tube Choices
- 2″ Focus Lens
- Exhaust Fan
- Water Cooling
- Air Compressor
Non-obligatory Equipment
(Please contact assist@matterhackers.com for extra data on equipment for the FSL Muse)
- Improve Cooling System: Refrigerated Water Chiller
- Improve Exhaust System: Giant Exhaust Fan; Fume Extractor/Air Air purifier Choices
- Specialised Focus Lenses: 1.5”; 2.5”; 5.0”
- Rotaries: Friction Rotary
- Riser
