Maker Jack Nelson has upcycled a transportable file participant into an all-in-one cyberdeck, powered by — what else? — a Raspberry Pi 4 Mannequin B single-board pc linked to a compact keyboard and trackball pairing for inputs.
“This cyberdeck began as a renovation of a mediocre file participant right into a housing for a Raspberry Pi,” Nelson explains of their mission. “It additionally grew to become a purposeful set of pc audio system, and it was my work pc for script supervision. The Crosberry Pi is a media machine, in that it does a terrific job of taking part in lofi hip hop and radio broadcasts at an honest quantity and with that basic Crosley sound.”
The framework for the construct is, as Nelson says, a Crosley CR40 transportable file participant which incorporates two built-in audio system and a quantity management system. Having been dissatisfied with its efficiency, Nelson set about changing it — gutting the case bar the unique audio system and amplifier and becoming a Raspberry Pi 4 Mannequin B single-board pc, a Thinlerain transportable monitor, and a powered USB hub.
For enter, the construct makes use of a Drop+Olkb Preonic ortholinear keyboard with LED lighting, providing a sure aesthetic attraction, and a Logitech Marble Mouse trackball faraway from its authentic housing and put in as a everlasting addition. “Sure, the buttons are onerous to press,” Nelson admits, “however, with apply, hitting these little crimson switches grew to become second nature for me.”

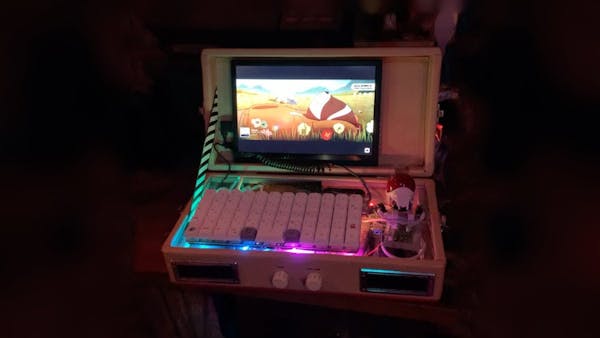

The Raspberry Pi’s audio is linked to the unique audio system and amplifier, providing “that basic Crosley sound.” (📷: Jack Nelson)
“Making use of the audio system within the case was my good spouse’s concept,” Nelson provides. “We used a donor 3.5mm audio cable and soldered it to the present board, which is definitely accessible when you take away the plastic turntable high. I eliminated the RCA outputs and used the opening within the case for the USB hub’s energy cable, which powers the whole deck.”
The complete mission write-up, with a whole listing of elements used, is offered on Nelson’s Hackaday.io web page.
