Successfully, these bots are inbuilt segments, and every section has its personal multicopter propulsion unit, able to vectoring thrust in any path due to multi-axis gimbal methods. The segments are joined collectively, however able to articulating in a spread of various instructions, and the staff has labored out co-ordinate all these propulsion methods in actual time, even because the construction adjustments form whereas it flies. The idea was initially impressed by the considered flying dragons, and the best way these legendary beasts might easily undulate their our bodies within the air.
“After I was a toddler, I am from China, so I used to be at all times dreaming of dragons,” says venture chief and Assistant Professor Moju Zhao. “There are many bio-inspired robots, folks make robotic canines, robotic cats. The dragon isn’t an actual animal, however it’s a sort of holy image in Asia. Think about this robotic as a flying human arm, to do manipulation within the air. To alter a lamp, or open a door like a human arm. You possibly can additionally suppose this robotic can rework like a snake; it may possibly discover very slim areas.”
Within the video beneath, you possibly can see the state of the staff’s “Dragon” robotic. It is a bit of wobbly and a bit of sluggish, however contemplating the complexity concerned in controlling a multirotor plane that is regularly altering its structural form and orientation, it is extremely spectacular. The robotic is proven starting to deal with fundamental duties, like pushing and pulling objects, and curling round on itself to create a flying gripper ring able to grabbing, compensating for, manipulating and releasing objects as much as 1 kg (2.2 lb) in weight.
Versatile Articulated Aerial Robotic DRAGON: Aerial Manipulation and Greedy by Vectorable Thrust
It is a fairly extraordinary thought, a flying claw type of deal that would snake its means round an space, seize issues and do helpful duties with them. One other video reveals the Dragon utilizing pin-like attachments to open and shut giant valves, in upwards, downwards and horizontal orientations.
SPIDAR: SPherIcally vectorable and Distributed rotors assisted Air-ground amphibious quadruped Robotic
The staff has been engaged on the Dragon for a variety of years now, and it is simple to see the potential of such a wildly versatile aerial platform as soon as the flight management software program will get faster and it begins shifting with extra pace and fluidity.
Now, the staff has offered a good stranger tackle the idea, within the type of its new “SPIDAR” robotic, a torturous acronym for “SPherIcally vectorable and Distributed rotors assisted Air-ground amphibious quadruped Robotic.”

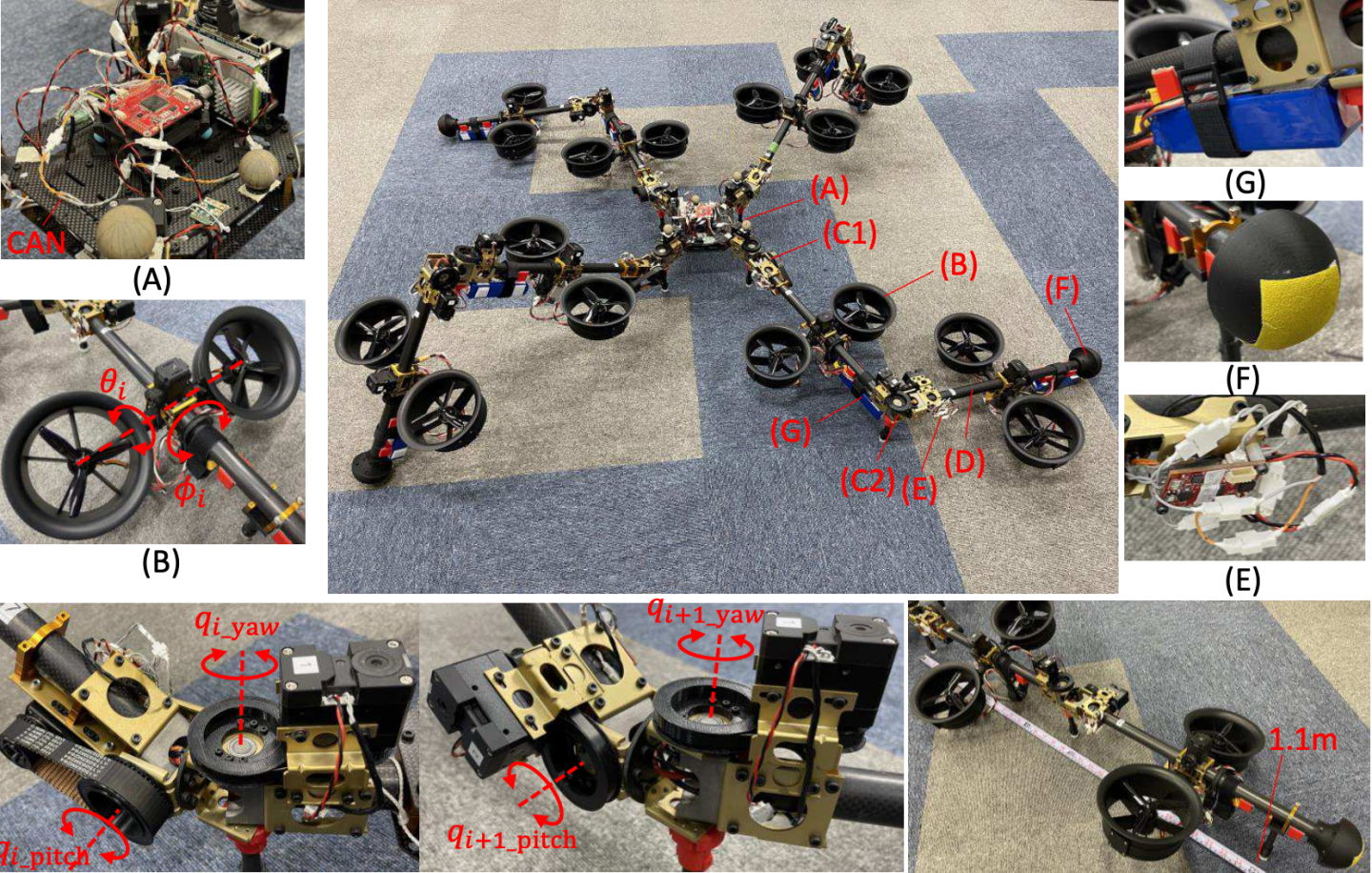

The SPIDAR is a quadruped robotic with articulating joints on the hip and knee of every leg. These joints are weakly motorized to help with motion, however the staff sought to attenuate redundant motors by utilizing the vectored multicopter propulsion models on every section as the first means to maneuver the legs – in addition to to elevate your complete 15 kg (33 lb) construction into the air.
Moju Zhao / College of Tokyo
Because the video beneath reveals, what you find yourself with is an especially sluggish and noisy spider robotic, whose legs look weak and wobbly at this stage. It additionally seems prefer it’s working exhausting to remain airborne, with harmonic vibrations among the many propulsion models clearly an issue. The strolling movement seems a bit of pointless – it may possibly stroll for 20 minutes, or fly for 9 minutes on its present battery setup, and it is instantly apparent that one minute of flying will take this factor additional than 10 minutes of strolling.
Nevertheless it nonetheless raises some very cool prospects; with a bit of extra growth, this may grow to be a four-point flying claw gripper doubtlessly able to holding and manipulating two objects directly; taking the lid off a jar, for instance, or holding a field whereas choosing one thing up and placing it within the field.
SPIDAR: SPherIcally vectorable and Distributed rotors assisted Air-ground amphibious quadruped Robotic
Clearly, these are very early prototypes. However with a bit of creativeness, we will see these growing into Matrix-style flying squid robots with as many arms as is sensible. With propulsion models on every tentacle or leg section, the arms aren’t lifeless weight on the airframe; every is a help, and might present elevate with various levels of leverage relying on the place the load’s at. Such machines might carry out a number of duties directly, doubtlessly locking their free “arms” to brace their buildings in opposition to partitions, ceilings, flooring or different stable objects the place further pressure or leverage is required.
It is an interesting idea, with the potential to create some outstanding and helpful flying robots with capabilities and kinds we have not likely seen in nature – they have been the stuff of fantasy and sci-fi. Very neat.
A paper on the Spidar robotic is obtainable right here.
Supply: Moju Zhao/College of Tokyo by way of IEEE Spectrum
