I am undecided if anybody knew about ocarinas previous to 1998 and there’s no potential option to discover out. However the launch of The Legend of Zelda: Ocarina of Time actually launched a whole technology of us to the instrument. The ocarina is a key gameplay factor in that installment of the franchise and its melodies are fairly memorable. However if you happen to ever bought your palms on an actual ocarina, then you already know they don’t seem to be straightforward to play nicely. That is why 3DSage constructed this contraption to that may play an ocarina by itself.

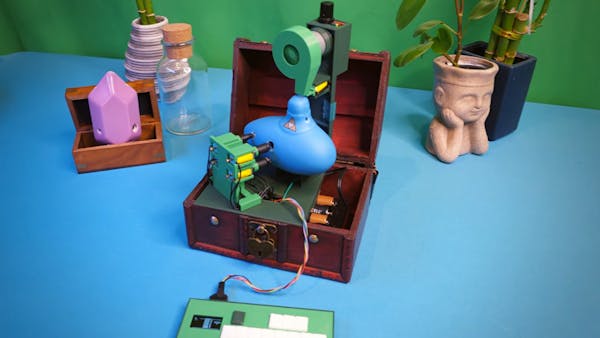

3DSage has a number of ocarinas and selected one for this venture that appears precisely like Hyperlink’s iconic instrument. Like each different ocarina, this can be a wind instrument and it requires airflow to provide sound. It has a number of open holes, which the participant can shut to change the observe. With the intention to automate that course of, 3DSage wanted a approach for the machine to blow air and to cowl or uncover the holes on demand.
Earlier than he might start that growth, 3DSage needed to provide you with a way for interfacing with the ocarina with out damaging it. It has a really natural form that might be nearly unimaginable to measure utilizing conventional instruments, so 3DSage turned to 3D-scanning. Utilizing a Creality Ferret 3D scanner, he managed to seize a 3D mannequin that was correct sufficient for this function. That gave him a reference to make use of when doing the CAD work for the taking part in mechanisms.
To blow air, 3DSage designed and 3D-printed a easy fan blower pushed by a DC motor. That has a fundamental controller with a potentiometer to regulate the blower velocity. A small solenoid-actuated defend blocks the ocarina’s mouthpiece when it is not taking part in a observe.
Solenoids additionally actuate plugs for the finger holes. A Microchip ATtiny84 microcontroller tells these when to open or shut by means of transistors. To tidy up the wiring, 3DSage used a mini desktop CNC mill to manufacture a customized PCB. He additionally constructed a keypad that lets him change notes with the press of a button. That features an OLED display that reveals the present observe.
3DSage can play the ocarina manually with that keypad, or he can code sequences of notes for totally automated music. Within the latter situation, he appears to have struggled with correct timing. However a MIDI library would clear up that downside and let him play any track beneath the course of a pc and MIDI file. If he will get the timing excellent, he could even be capable of summon Epona.
