What’s Correction Knowledge? – Information

Correction knowledge is utilized in surveying and navigation to boost the accuracy of World Navigation Satellite tv for pc Programs (GNSS). These techniques, such because the GPS, present positioning data by receiving alerts from a number of satellites. Nonetheless, numerous components can introduce errors into the measurements, reminiscent of atmospheric delays, satellite tv for pc orbit inaccuracies, and receiver clock errors.

GNSS can present correct and dependable positioning data wherever on Earth. GNSS permits exact dedication of latitude, longitude, and altitude by leveraging a constellation of satellites, permitting customers to navigate with confidence. It performs a important function in numerous sectors, together with transportation, emergency companies, surveying, and agriculture, the place it enhances effectivity, security, and effectiveness in navigating the more and more interconnected world. It is also essential for scientific analysis, geodesy, and monitoring of tectonic actions.

Correction knowledge offers exact details about errors and permits customers to mitigate them successfully. By making use of correction knowledge, both via ground-based reference stations or satellite-based techniques, GNSS receivers can considerably enhance their positioning accuracy, particularly in real-time purposes the place excessive precision is essential.

Sign Errors

The GNSS works by using a constellation of satellites that constantly transmit alerts containing details about their areas and the time the alerts had been transmitted. Receivers on the bottom or in automobiles obtain these alerts and use the timing and placement data to calculate their very own positions via a course of known as trilateration.

Trilateration includes measuring the time it takes for the alerts from a number of satellites to succeed in the receiver. By realizing the pace of sunshine, the receiver can calculate the gap to every satellite tv for pc primarily based on the time delay. Utilizing GPS, it’s essential to know the gap to 3 satellites to pinpoint a location, and a fourth to account for clock errors.

There are a number of sources of inaccuracies in GNSS positioning. Among the widespread sources embody:

• Atmospheric Delays: GNSS alerts might be delayed or distorted as they move via the Earth’s ambiance. Elements reminiscent of ionospheric and tropospheric circumstances can introduce errors within the sign propagation, resulting in inaccuracies in positioning.

• Multipath Interference: Multipath interference happens when GNSS alerts mirror off surfaces reminiscent of buildings, timber, or different obstacles earlier than reaching the receiver. These mirrored alerts can intrude with the direct alerts, inflicting errors within the place calculation.

• Satellite tv for pc Orbit Errors: GNSS satellites have predictable orbits, however there might be slight deviations from their very best paths. Inaccuracies in satellite tv for pc orbit dedication or clock synchronization can introduce errors within the positioning calculations.

• Receiver Errors: GNSS receivers themselves can introduce errors resulting from imperfections within the receiver {hardware} or software program. These errors can come up from sign processing, noise, or calibration points inside the receiver system.

• Geometric Dilution of Precision (GDOP): GDOP is a measure of the geometric configuration of satellites relative to the receiver. Poor satellite tv for pc geometry, reminiscent of having satellites clustered in a single space of the sky, can lead to larger positioning errors.


• Sign Obstruction: Buildings, timber, and different bodily obstructions can block or weaken GNSS alerts, resulting in decreased sign high quality and elevated positioning errors. Nonetheless, GNSS alerts are usually not affected by clouds, fog, and even rain. The frequencies had been particularly chosen to propagate via these climate occasions and supply correct knowledge in any climate or local weather.

• Ephemeris and Clock Errors: The exact details about satellite tv for pc positions (ephemeris) and satellite tv for pc clocks is constantly transmitted to receivers. Nonetheless, errors within the ephemeris knowledge or satellite tv for pc clock synchronization can impression the accuracy of GNSS positioning.

Sorts of Corrections

To mitigate these inaccuracies, numerous methods are employed, together with differential GNSS (DGNSS) that makes use of reference stations to offer correction knowledge, satellite-based augmentation techniques (SBAS) that broadcast correction alerts, and real-time kinematic (RTK) positioning that makes use of carrier-phase measurements for larger accuracy.

DGNSS

Differential correction is a way utilized in GNSS positioning to enhance the accuracy of measurements. It includes evaluating the measurements from a reference station, referred to as the bottom station, with these from a roving receiver. By calculating the variations between the 2 units of measurements, correction knowledge is generated and utilized to the roving receiver’s measurements, leading to improved accuracy.

The bottom station is a stationary GNSS receiver with a identified place. It constantly tracks the alerts from the identical satellites that the roving receiver is observing. The bottom station’s measurements, known as reference measurements, are collected and processed. These measurements are then transmitted to the roving receiver, sometimes via a radio hyperlink or different technique of communication.

On the roving receiver, the obtained correction knowledge is utilized to the corresponding measurements. This correction compensates for numerous errors and inaccuracies current within the measurements, by subtracting the correction knowledge from the roving receiver’s measurements, the accuracy is enhanced, leading to improved positioning accuracy.

Differential correction might be carried out in actual time or as post-processing after knowledge assortment. In real-time differential correction, the correction knowledge is transmitted to the roving receiver instantly, enabling instantaneous enhancements in accuracy. Submit-processing differential correction includes accumulating knowledge with each the bottom station and the roving receiver after which processing the info offline to generate exact correction knowledge that’s utilized retrospectively.

Actual-Time Kinematic (RTK) Correction

RTK is a sort of differential correction to that includes measuring the provider section of GNSS alerts as a substitute of the info inside them. By analyzing the provider section, RTK can mitigate errors brought on by atmospheric delays and different sources, resulting in centimeter-level positioning accuracy in actual time.

RTK works by establishing a mounted base station with a identified place and a cellular rover receiver whose place is to be decided. The bottom station receives alerts from GNSS satellites and calculates the exact section measurements. These measurements, together with the identified place of the bottom station, are transmitted to the rover receiver in actual time. The rover receiver then compares its personal provider section measurements with the corrected section measurements obtained from the bottom station, enabling it to compute extremely correct positioning data.

Nonetheless, RTK does have just a few limitations. It requires a real-time communication hyperlink between the bottom station and the rover receiver, which can restrict its vary of operation. In areas with restricted or no communication protection, the RTK approach is probably not possible. Second, RTK positioning is delicate to sign obstructions and multipath interference. Buildings, timber, or different obstacles that block or mirror alerts can introduce errors within the provider section measurements, impacting the accuracy of RTK positioning. Moreover, RTK might be affected by ionospheric and tropospheric circumstances, and inaccuracies within the base station place or satellite tv for pc ephemeris knowledge can even degrade its efficiency.

Moreover, RTK requires exact synchronization of clocks between the bottom station and the rover receiver. Any discrepancies in clock synchronization can introduce errors within the provider section measurements, affecting the accuracy of the positioning resolution. Moreover, RTK gear might be comparatively costly and requires cautious setup and calibration to attain optimum efficiency.

Regardless of these challenges and limitations, RTK stays a beneficial approach for reaching extremely correct real-time positioning in purposes reminiscent of surveying, precision agriculture, and building. It continues to be an important instrument for purposes that demand centimeter-level accuracy and require exact positioning data in actual time.

Satellite tv for pc Based mostly Augmentation System (SBAS)

SBAS stands for Satellite tv for pc-Based mostly Augmentation System. It’s a regional or world system that makes use of further satellites and ground-based infrastructure to enhance and improve the accuracy, integrity, and availability of GNSS alerts. SBAS techniques are designed to offer improved positioning accuracy, integrity monitoring, and availability of GNSS alerts for numerous purposes.

The first function of an SBAS is to mitigate errors and improve the efficiency of GNSS by offering correction and integrity data. These techniques are sometimes operated by governmental or collaborative entities and canopy particular geographical areas. Totally different areas have their very own SBAS techniques; Huge Space Augmentation System (USA), European Geostationary Navigation Overlay Service (Europe), Multi-functional Satellite tv for pc Augmentation System (Japan), and the Indian Satellite tv for pc-Based mostly Augmentation System (India) are just a few. These are all operated by their respective area’s governing physique for aviation.

SBAS techniques use a community of reference stations, satellite tv for pc hyperlinks, and ground-based grasp stations to gather GNSS measurements, compute correction knowledge, and broadcast them to consumer receivers by way of geostationary satellites. GNSS receivers geared up with SBAS functionality obtain these correction messages, which allow them to boost their accuracy and reliability.

Rising Applied sciences and Developments

Exact Level Positioning (PPP) is a way utilized in GNSS positioning to attain high-precision and correct positioning options. In contrast to conventional differential methods that depend on correction knowledge from close by reference stations, PPP leverages a worldwide community of reference stations distributed worldwide. By using exact measurements from a number of GNSS satellites and complex algorithms, PPP permits centimeter-level positioning accuracy with out the necessity for a close-by reference station.

PPP operates by processing the uncooked GNSS measurements from the consumer’s receiver together with the measurements from the worldwide community of reference stations. The reference station measurements are used to compute correction parameters, reminiscent of satellite tv for pc orbit and clock errors, atmospheric delays, and different systematic errors. These correction parameters are then utilized to the consumer’s measurements to enhance the accuracy of the positioning resolution. PPP takes under consideration components reminiscent of satellite tv for pc geometry, atmospheric circumstances, and sign propagation delays to attain exact positioning outcomes.

To implement PPP, a consumer sometimes wants entry to specific correction knowledge, which is often supplied via satellite-based augmentation techniques (SBAS) or Web-based companies. This correction knowledge is transmitted to the consumer’s receiver in actual time or can be utilized for post-processing. The receiver incorporates this correction knowledge together with its personal measurements to compute extremely correct positioning options. PPP is broadly utilized in purposes reminiscent of surveying, geodesy, precision agriculture, and scientific analysis, the place high-precision positioning is crucial. It affords a strong and globally out there resolution for reaching correct and dependable positioning outcomes.

Multi-constellation and multi-frequency GNSS refers back to the utilization of alerts from a number of satellite tv for pc constellations and a number of frequency bands in GNSS positioning. Historically, GPS (World Positioning System) has been the first constellation used for positioning. Nonetheless, developments in expertise have led to the deployment of further constellations reminiscent of GLONASS, Galileo, and BeiDou, which vastly develop the variety of out there satellites for positioning.

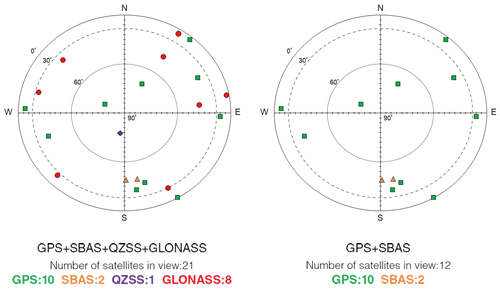

By incorporating alerts from a number of constellations, multi-constellation GNSS improves the supply and reliability of satellite tv for pc alerts. It permits receivers to trace satellites from completely different constellations concurrently, growing the variety of seen satellites and lowering the danger of sign blockages brought on by obstructions or sign interference. This enhances the robustness and accuracy of positioning options, significantly in difficult environments reminiscent of city canyons or areas with dense foliage.

Moreover, multi-frequency GNSS refers back to the reception and processing of alerts throughout completely different frequency bands. Conventional GPS receivers sometimes used L1 frequency alerts. Nonetheless, with the introduction of recent constellations and alerts, improvement of GNSS receivers that may obtain alerts on a number of frequencies (reminiscent of L1, L2, L5, E1, E5, and many others) might progress quickly. Multi-frequency GNSS affords a number of advantages, together with improved ionospheric error correction and extra correct dedication of provider section measurements. It helps mitigate the results of ionospheric delays, which might introduce errors in GNSS positioning, significantly for single-frequency receivers.

Correction knowledge performs an important function in integrating with different positioning applied sciences to boost accuracy and reliability.

• Inertial Navigation Programs (INS): INS combines measurements from inertial sensors (accelerometers and gyroscopes) with GNSS knowledge to offer steady and correct positioning data. Nonetheless, inertial sensors are liable to drift over time. By integrating correction knowledge, reminiscent of from PPP or differential methods, with INS, the drift errors might be corrected, bettering the long-term accuracy and stability of the positioning resolution.

• Sensor Fusion: Correction knowledge will also be built-in with different sensors, reminiscent of magnetometers, odometers, or vision-based techniques, in sensor fusion approaches. Sensor fusion combines knowledge from a number of sensors to create a extra strong and correct positioning resolution. By incorporating correction knowledge, obtained from reference stations or exact GNSS methods, the accuracy of the fusion resolution might be improved, significantly in difficult environments the place particular person sensors could also be liable to errors or limitations.

Integration of correction knowledge with different positioning applied sciences is often achieved via applicable algorithms and knowledge fusion methods. The correction knowledge is both utilized on to the measurements or utilized in error modeling and estimation processes to enhance the accuracy of the positioning resolution. This integration permits customers to leverage the strengths of various applied sciences and improve the general efficiency and reliability of positioning techniques in numerous purposes.

Functions of Correction Knowledge

Aviation and Aerospace

Correction knowledge is essential in aviation and aerospace industries to make sure correct and dependable positioning for plane and spacecraft. In aviation, GNSS receivers on board plane obtain correction knowledge, reminiscent of these supplied by satellite-based augmentation techniques (SBAS), to boost the accuracy of plane navigation. That is significantly vital throughout precision approaches and landings, the place exact positioning is crucial for secure operations. Correction knowledge helps pilots keep the specified flight path, keep away from obstacles, and optimize flight effectivity. Within the aerospace business, correction knowledge can also be utilized for exact orbit dedication of satellites, permitting for correct satellite tv for pc positioning, perspective management, and exact payload deployment.

Maritime Navigation

Correction knowledge is broadly utilized in maritime navigation for bettering the accuracy and security of vessels at sea. Ships geared up with GNSS receivers obtain correction knowledge, sometimes via radio or satellite tv for pc hyperlinks, to appropriate for errors in satellite tv for pc alerts and improve the accuracy of place fixing. That is significantly vital in marine transportation, the place exact positioning is essential for secure navigation, collision avoidance, and environment friendly route planning. Correction knowledge helps vessels navigate via difficult marine environments, reminiscent of congested waterways, areas with sign blockages, or areas with robust tides or currents.

Surveying

Correction knowledge performs a significant function in surveying and mapping purposes, the place high-precision positioning is required. Surveyors use GNSS receivers to gather exact measurements for mapping, land surveying, building initiatives, and even mapping uncharted caves. By integrating correction knowledge, reminiscent of real-time kinematic (RTK) or post-processed differential correction knowledge, surveyors can obtain centimeter-level positioning accuracy. Correction knowledge helps compensate for numerous error sources, together with atmospheric delays, satellite tv for pc clock errors, and multipath results. This ensures that surveying and mapping knowledge is extremely correct and dependable, enabling the creation of detailed and exact maps, fashions, and infrastructure plans.

Agriculture

In precision agriculture, correction knowledge is used to optimize farming operations and enhance crop yields. GNSS receivers built-in into agricultural equipment, reminiscent of tractors or drones, obtain correction knowledge in actual time, permitting for exact positioning of the gear. This permits farmers to carry out exact duties, reminiscent of planting, spraying, or harvesting, with excessive accuracy. Correction knowledge helps farmers reduce overlaps, scale back enter waste, and apply fertilizers or pesticides with precision. By leveraging correction knowledge, precision agriculture practices can enhance useful resource effectivity, scale back environmental impression, and optimize crop productiveness.

Autonomous Automobiles

Correction knowledge can also be important for the profitable operation of autonomous automobiles, together with self-driving automobiles, drones, and robotics. Autonomous automobiles rely closely on correct and dependable positioning data for navigation, impediment detection, and path planning. GNSS receivers in autonomous automobiles use correction knowledge to boost positioning accuracy, significantly in difficult city environments or areas with sign interference. Actual-time correction knowledge, delivered via mobile networks or Web-based companies, permits autonomous automobiles to take care of correct positioning, enabling secure and environment friendly autonomous operations. Correction knowledge ensures that autonomous automobiles can precisely navigate advanced highway networks, keep away from collisions, and make knowledgeable choices primarily based on dependable positioning data.

Correction knowledge performs a significant function in enhancing the accuracy and reliability of GPS positioning. By offering data to mitigate errors and enhance satellite tv for pc measurements, correction knowledge permits exact positioning in numerous difficult environments reminiscent of city areas, dense foliage, and signal-obstructed areas. The combination of correction knowledge has revolutionized industries reminiscent of aviation, maritime navigation, surveying, precision agriculture, and autonomous automobiles, enabling safer operations, elevated effectivity, and improved outcomes.

Wanting forward, the way forward for correction knowledge holds promising prospects for additional developments. As expertise continues to evolve, we will count on enhancements within the availability, accuracy, and supply strategies of correction knowledge. Developments in multi-constellation and multi-frequency GNSS techniques, together with the mixing of further sensor applied sciences, will contribute to much more exact and dependable positioning options. Furthermore, the rising utilization of cloud computing, machine studying, and synthetic intelligence opens doorways for superior algorithms and fashions that may improve the processing and utilization of correction knowledge, additional bettering positioning accuracy and reliability.

Additional Sources

Check out our surveyor line that makes use of RTK correction knowledge:

And take a look at our merchandise that use RTK:

We even have a lot of weblog posts about RTK expertise:

In addition to tutorials that present you precisely how you can begin using the GNSS in your individual work:

Utilizing RTK in a challenge? Have some expertise with correction knowledge? We wish to hear about it! Share within the feedback, or discover us on Twitter @sparkfun, or tell us on Instagram, Fb or LinkedIn.
