A New Breed Of Decentralised Power.

Transportable energy stations (PPS) are a brand new breed of merchandise that permit important vitality storage on the consumer finish and likewise permit for its use in both AC or DC kind. The PPS are available numerous sizes and shapes, from the small ones giving about 50Wh of vitality to bigger stations of as much as 4kWh capability

The distinction between developed and rising economies is mostly expressed when it comes to their per capita buying energy parity or the per capita GDP. One other fascinating information that may be thought of is their per capita vitality utilization. Primarily based on the freely accessible ample information that we’ve now, as proven in Fig. 1, it’s clear that there was a powerful correlation between these two portions.

Energy use per person vs GDP per capita for India
Fig. 1: Power use per individual vs GDP per capita for India (Supply: https://ourworldindata.org)

Additionally, apparently, not solely the precise values however the modifications in these two portions are additionally strongly correlated, as proven in Fig. 2—significantly for rising economies. This implies that the financial improvement of a creating nation corresponds to its per capita vitality utilization. So, a postulation as a corollary to the above information is that rising the per capita vitality use can lead to rising per capita GDP of the nation!

Power utilization is distributed throughout totally different sources and one of many vital types of vitality is electrical vitality. To have the ability to use electrical vitality, its steady availability is crucial. Over time, it has been discovered that large-scale energy manufacturing is sustainable in the long term. Nonetheless, this produced energy must be transmitted instantly to hundreds scattered throughout the grid. In truth, energy manufacturing is often stored in sync with the continuing energy demand on the grid.

Fig. 2: Change in energy use vs GDP per capita for India (Source: https://ourworldindata.org)
Fig. 2: Change in vitality use vs GDP per capita for India (Supply: https://ourworldindata.org)

However giant scale vitality storage isn’t so sustainable. Other than operational challenges in giant scale vitality storage, one of many vital elements is that the majority storage mechanisms use the direct present (DC) kind, whereas the manufacturing of energy and its transmission is generally within the alternating present (AC) kind.

There are inefficiencies within the conversion from AC (sources) to DC (storage) and again to AC for transmission, which compound to make this a foul selection. Extra so as a result of the eventual private utilization of vitality is generally executed within the DC kind. Therefore, taking a look at numerous points, decentralised vitality storage methods turn out to be crucial.

Transportable energy stations (PPS) are a brand new breed of merchandise that permit important vitality storage on the consumer finish and likewise permit for its use in both AC or DC kind. The PPS is available in numerous sizes and shapes, from the small ones giving about 50Wh of vitality to bigger stations of as much as 4kWh capability, which offers on-demand vitality at buyer institutions to run numerous home equipment for a big time.

Being an vitality storage gear, it clearly comes with the related battery storage and battery administration methods. The PPS, nonetheless, additionally include particular capabilities which differentiate them from easier gear, comparable to moveable energy banks. These have the next talents:

  1. Present each AC and DC types of energy and typically at a number of voltages.
  2. Can get charged from a number of sources (in some instances concurrently), such because the grid AC provide or by way of direct DC inputs like photo voltaic PV or in-vehicle 12V provides.
  3. May be paralleled to offer for on-demand bigger storage capabilities.

Along with their skill to offer user-end on-demand vitality, these methods can even play a pivotal function in occasions of pure disasters. As everyone knows, the primary issues to exit when a storm hits your neighborhood is {the electrical} provide. In such occasions, a PPS is usually a lifesaver, as it might probably run most of your property gear for a very long time. PPS models will also be lifesavers on lengthy journeys, off-roading adventures, and different locations, comparable to household picnics and tenting.

As electrical automobiles turn out to be extra widespread, PPS models may be handled as your reserve gas, as they will cost the EV by means of their AC shops. These from an earlier era might keep in mind moveable mills, which might be used to offer on-demand energy in retailers, markets, houses, and so on. All such use instances apply on to moveable energy stations.

For the good thing about all, let’s strive to determine what goes into making a conveyable energy station. Because the identify suggests, a PPS is a storehouse of vitality that may present important quantities of energy by means of its numerous totally different output ports and may be charged up from numerous sources {of electrical} vitality.

Among the well-known manufacturers of PPS within the USA are:
1. Jackery
2. EcoFlow
3. Bluetti
4. Anker
5. Pecron

Photo voltaic product suppliers in India additionally present variations of PPS which are typically referred to as photo voltaic mills, photo voltaic dwelling UPS, or photo voltaic backup dwelling lighting methods. Most of those are stationary methods put in in houses and workplaces and used principally for lighting functions. The facet of portability whereas offering a big energy output is never accessible and presents a Blue Ocean market state of affairs for Indian producers.

Apart from, whereas there are a number of photo voltaic dwelling lighting system suppliers in India, their merchandise typically feel and appear comparable, which means that these merchandise are assembled from generally accessible elements and never manufactured by the provider. The precise feel and appear of a product play an enormous function in forming a reference to the client and this facet ought to be thought of by the producers.

As well as, many white items manufacturers additionally produce PPS. The above US manufacturers have been capable of make a reputation for themselves by offering a lot of selections to the shoppers in order that merchandise that swimsuit their precise wants are made accessible to them. Examples of those merchandise are proven in Fig. 3.

(a) Jackery 500, a 500W Power Station, (b) EcoFlow Delta 1300, a 1300W Power House, (c) Anker 200, a 200W Power Station, and (d) Bluetti EB70S 800W, 716Wh Power Station
Fig. 3: (a) Jackery 500, a 500W Energy Station, (b) EcoFlow Delta 1300, a 1300W Energy Home, (c) Anker 200, a 200W Energy Station, and (d) Bluetti EB70S 800W, 716Wh Energy Station

As proven in Fig. 4, a PPS consists of primarily the next:

  1. AC-DC converters
  2. DC-DC converters related to DC inputs
  3. A number of enter cost controller
  4. Battery supply with a BMS
  5. DC-DC converters related to numerous DC output ports (USB-C, USB, 12V automobile socket, wi-fi charging ports)
  6. DC-AC inverters produce steady and pure sine wave AC output at their numerous ports
    In Fig. 4, all the key parts of a typical PPS have been proven. The enter and output ports are proven in light-green packing containers, enter electronics in gentle blue, output electronics in amber, and the battery and its associated electronics have been proven within the light-purple background. The design of the unit has the next vital options:
  1. Enter-output ports
  2. Battery and BMS
  3. Enclosure
  4. Indication and management
  5. Energy conversion

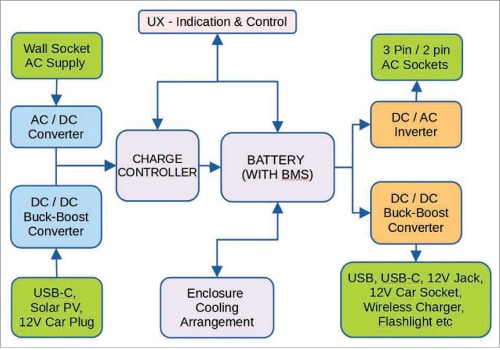

    block diagram of typical portable power station
    Fig. 4: A block diagram view of a typical moveable energy station

Enter-output Ports

The initially design points are the kind of enter and output ports the product ought to have. Any respectable energy station ought to have sufficient enter and output ports to have the ability to assist a number of charging and discharging units.

Enter ports: A typical enter port is the 3-pin AC wall socket. Since portability of the unit is vital, it might be good to have a detachable AC energy wire, which connects to a 3-pin AC enter port on the PPS. Higher nonetheless can be a retractable AC enter wire that folds into the unit for simply carrying the identical with the unit.

Because the energy station could also be used away from dwelling/workplace, it might be nice if it might be charged utilizing a photo voltaic PV enter. The standard 12V enter socket from a photo voltaic PV panel is an efficient candidate on this case. Generally, the PPS might have to cost from one other PPS; on this case, there ought to be a option to cost utilizing a direct DC connection between the 2 PPS models.

Output ports: Output ports can also be the common 3-pin and 2-pin AC sockets. These would require an excellent high quality inverter—if potential, a 3-phase 220V AC inverter. That is vital as a result of some objects might require 120V AC (which may be offered through the use of a part and the impartial), and a few might require 220V AC (which may be offered throughout two phases).

Whereas such AC sources are utilized in houses and workplaces, one has to do not forget that except the PPS unit is related to the principle grid impartial always, the AC outputs produced by the PPS won’t be floor referred. Due to this fact, typical earth leakage/fault safety mechanisms (comparable to residual present breakers) made obligatory in dwelling wirings won’t be potential for these AC sources. The PPS might permit the consumer to attach the true earth floor to the PPS utilizing a particular floor terminal, and on this case, the PPS should present the above protections on all its AC outputs.

Typical DC output ports will represent USB-A ports, USB-C PD ports, 12V jacks, and 12V automobile charger sockets. A USB-A port could also be created through the use of a easy 5V buck converter of the required present capability. A particular energy supply (PD) USB-C adaptor might be required for the USB-C ports. Automobile charger sockets can present as much as 4A present, so the 12V buck adaptor utilized by the PPS should present that present.

Some PPS models present an ambient gentle supply with brightness degree controls. These are nice for out of doors use and use as an emergency lights throughout energy cuts.

As wi-fi charging of smartphones comes of age and turns into extra widespread, most of the PPS makers would want to offer not less than one, and typically two, wi-fi chargers built-in into the PPS. It is a huge characteristic for the shoppers who go for wi-fi charging of their telephones, and would positively be an excellent addition to the PPS characteristic lists. Though, this characteristic would additionally improve the price of the unit fairly a bit.


The enclosure performs an especially vital function within the success of the PPS models. As proven in Fig. 3, the enclosures of essentially the most well-known manufacturers are manufactured from high-quality plastic, which appears to be barely in opposition to logic, as warmth removing is greatest executed in a metallic enclosure.

Nonetheless, fashionable plastics can present adequate warmth removing capabilities (UL94 V-0 sort plastics), whereas guaranteeing that the consumer expertise is nice so far as feel and appear is worried.

As in all different merchandise, enclosure design is an integral a part of the product design. Along with vital facia particulars, comparable to the situation and measurement of the indication and management equipment, location of the enter and output ports, and lots of minute particulars—comparable to the situation of the carrying deal with, path for the air passage, location of compelled cooling followers, presence of an ambient gentle supply—have a huge effect on the general buyer expertise. Because the vitality capability of the PPS grows, the enclosure wants to include metallic elements and even drawing wheels to ease the portability of the models.

An vital facet of enclosures can be to make sure that there may be sufficient free house left for a transparent air circulation path. This house might be calculated from the worst-case energy dissipation values (in watts), which might give an concept of the temperature rise which will occur in locked stationary air after which deducing the quantity of air to be displaced per unit time, which can result in the sizing of the free air house and the followers used for compelled cooling.

Indication and Management

Latest-day methods have some sort of display to point out their standing and to permit the consumer to make management picks. Though there should not a lot management picks that the consumer could make in a PPS, it has been a conference in nearly all PPS models to have an LCD or a TFT display which offers detailed standing details about the unit. The standard objects proven on the screens are:

  1. Battery cost indication within the proportion of the general Wh capability
  2. Battery charging and discharging indication
  3. Time of full discharge to point out how lengthy the PPS unit’s battery will final at this time discharge present ranges
  4. Time to full cost to point out how lengthy it might take for the PPS battery to be totally charged at this time charging present degree
  5. Charging enter ranges for every sort of charging enter
  6. Discharging supply indication and degree of discharge for every

The standard management picks are beginning and stopping of various discharge sources, comparable to AC and DC output switches.

Energy Conversion

The facility conversion elements kind the center of the whole product. As proven in Fig. 4, the ability conversion structure contains the charging controller, battery and BMS, AC to DC rectifiers, DC to AC inverter, and DC to DC converters at each enter and output ports.
There are a number of product teardown movies on-line, and most of those movies present that the PPS models have purpose-built PCBs, which give essentially the most effectivity and integration of all capabilities that the PPS affords. This typically signifies that the designers would want to create PCBs that might be utilized in a number of merchandise, with particular hooks to pick out particular capabilities based mostly on the product mannequin. This integration additionally aids within the upkeep and repairs of PPS models and reduces e-waste as there are fewer PCBs to recycle.

Some PPS models additionally permit a number of models to be chained (chainable models) with different comparable models to offer longer backups or greater energy. This functionality ought to be simple to implement so long as the BMS in each models can discuss to one another over side-band connections offered in particular chaining cables. Such chaining would put the batteries contained in the PPS models in parallel.

Whereas prevalent within the discharging mode, we’re but to return throughout a chainable PPS that permits chained charging of a number of models from a single supply. This can be as a result of charging occasions are lowered when they’re charged individually.

There are quite a few potentialities on this house. Past the civilian use instances, PPS models could also be of assist in protection and paramilitary actions as these actions require lively use {of electrical} energy at locations the place the electrical energy grid might not be accessible.

Vishal Sapre is an electronics design skilled working with Righill Electrics as GM (Technical). His pursuits embrace embedded management methods, IoT, energy electronics, and using interpreted language methods, comparable to Python in microcontrollers
