Detecting biomarkers of tumorigenesis resembling accumulation of irregular genes, adjustments within the tumor microenvironment (hypoxia, acidification, interstitial hypertension, vascular hyperpermeability, inflammatory reactivity, immunosuppression), and so on., are one of many main approaches for designing the molecular imaging probes [22]. Most cancers is brought on by the buildup of mutations in genes, thus, genetic instability is the premise and vital characteristic of the prevalence and improvement of most cancers. Malignant organic behaviors resembling tumor prevalence, improvement, and metastasis is a fancy pathophysiological course of induced by a number of elements, involving a number of genes variations in numerous phases, which includes the activation of oncogenes, the inactivation of tumor suppressor genes and different associated gene adjustments, leading to cell proliferation, differentiation, and apoptosis [60, 61]. In the course of the prevalence and improvement of tumors, DNA transcribe into mRNA or non-coding RNAs firstly, after which translate into associated protein elements and receptors, and so on. For instance, microRNA (miRNA) is a non-coding endogenous small molecule RNA that participates within the post-transcriptional regulation of genes, which is carefully associated to tumorigenesis, metastasis, drug resistance and different pathological processes [62, 63]. Thus, RNA is straight associated to the expression and regulation of genes, and the copy variety of tumor-related RNAs is considerably elevated in contrast with the variety of most cancers genes. In response to the precept of Watson-Crick base pairing, oncogene-targeting nanoprobes can bind to tumor-related RNAs to acquire the correct tumor in vivo imaging. Moreover, irregular proteins generated by tumor-related RNAs translation and proteins that take part and regulate associated genes of tumors are additionally certainly one of symbolic targets when cancers happen, resembling RNA-binding protein (RBP) and nucleolin, and so on. [64, 65] Tumor-related proteins are overexpressed in numerous most cancers cell traces and endothelial cells, which the purposeful DNAs resembling DNA aptamers and DNAzymes can acknowledge [66].

Molecular imaging probes constructed by focusing on tumor-related biomarkers are anticipated to considerably enhance the precision and specificity of tumors in vivo imaging, particularly oncogene-targeting nanoprobes, which might determine mutated genes at an early stage of tumors for efficient imaging. Concurrently, with the nanomaterials modified or construction designed, oncogene-targeting nanoprobes might be ingested extra effectively by tumor cells. Due to this fact, on the premise of particular expression ranges of tumor-related biomarkers, the stimuli responsive probes might be achieved, which is of nice significance for selling early most cancers prognosis, early warning of metastasis and correct prognosis [67, 68].

Linear DNA construction

Linear DNA is the single-stranded DNA that was the primary kind of oncogene-targeting probes utilized for in vivo evaluation, which is extensively mixed with fluorescence and quencher to acquire the bioimaging with low background. Hnatowich and coworks [69] proposed a technique of linear DNA (DNA25-Cy5.5/cDNA18-BHQ3) for KB-G2 (an epidermal carcinoma cell line) tumor in vivo imaging. A 25-mer phosphorothioate (PS) anti-mdr1 antisense DNA is conjugated with the Cy5.5 emitter on its 3’ equal finish and hybridized as a linear duplex with a shorter 18-mer phosphodiester (PO) complementary DNA (cDNA) with the black gap inhibitor (BHQ3) on its 5’ finish (Fig. 2A). Mdr1 mRNA (multidrug-resistant gene) was chosen because the goal, which might be overexpressed in KB-G2 cells. Due to this fact, the authors injected DNA25-Cy5.5/cDNA18-BHQ3 into the KB-G2 tumor mice. After 30 min, the tumor/regular thigh fluorescence ratio was clearly optimistic, and reached a most at 5 h. It may be seen from Fig. 2B that an apparent accumulation of DNA probes might be noticed within the tumor area. That is attributed that when the DNA probes closed to the goal mRNA, they’d type a brand new and secure antisense DNA25-Cy5.5/goal mRNA duplex and launch the shorter DNA together with its inhibitor. To additional enhance the fluorescence sign in tumor mice, in one other work, Hnatowich and coworks [70] developed improved fluorescent DNA duplex probes with a ten mer minor strand (PS DNA25-Cy5.5/PO cDNA10-BHQ3). The fluorescence indicators are a lot increased than that of the 18 mer DNA25-Cy5.5/cDNA18-BHQ3 (Fig. 2C and D).

Fig. 2
figure 2

Reprinted with permission from ref [69,70,71]

(A) Schematic diagram of DNA25-Cy5.5/cDNA-BHQ3 for KB-G2 tumor [70]; (B) Entire-body fluorescence pictures of KB-G2 tumor bearing mice at 5 h following administration of DNA25-Cy5.5/DNA18-BHQ3 duplex [69]; Entire-body fluorescence pictures of KB-G2 tumor bearing mice at 20 min (C) and seven h (D) after injecting DNA25-Cy5.5/cDNA10-BHQ3 [70]; (E) Working precept of PBc-UN for NIR gentle and whole-body FI of HeLa tumor bearing mice after injection of PBc-UN with or with out subsequent NIR illumination [71].

To raised enhance the exactly goal efficiency, the event within the construction or the perform of linear DNA has been studied resembling MBs and DNA aptamers.

Molecular beacons (MBs)

For the reason that development in 1996, MBs are in a typical software for a lot of organic fields resembling genotyping, mutational evaluation, the detection of PCR merchandise and medical prognosis [30, 32]. MBs are DNA sequences composed of 1 target-recognition area of about 15–30 bases, which have a loop portion designed complementary to a desired goal nucleic acid sequence, and a stem portion consisted of two self-complementary areas with 5 or 6 nucleotides [72]. A photoluminescent species (PLS) and a quencher at completely different ends of the stem with a detailed proximity end in a robust quenching of the photoluminescence. When hybridized with the goal nuclear acid sequences, the MB loop portion adjustments right into a linear construction, forcing the PLS and quencher far aside with the restoration of photoluminescence. Zhao et al. [71] developed a DNA nanodevice (PBc-UN) with MBs, functionalized upconversion NPs (UCNPs), and a photocleavable (PC) bond, which controls miRNA imaging through the use of NIR gentle. The MB is labeled with fluorophore Cy5 and black gap quencher (BHQ2) on the reverse ends respectively and the Cy5 is quenched as a result of the shut distance to BHQ2. When the NIR gentle penetrates deep tissues, a high-energy UV gentle is emitted by the UCNPs. Then, the photocleavable bond is damaged and the MB can hybridize with the corresponding miRNA ensuing within the activated fluorophore sign. Moreover, the authors injected the probes into HeLa xenograft tumors on the left again of nude mice. It’s noticed in Fig. 2E that the PBc-UN + NIR handled group has a stronger fluorescence sign than the PBc-UN handled group. In one other research, Sheng et al. [73] reported a human apurinic/apyrimidinic (AP) endonuclease 1 (APE1)-triggered MB probe (E-MBP/V), which is loaded on a PEGylated poly(aminoethylmethacrylate)-based tri-block co-polymer as a non-viral vector. The sensitivity and tissue specificity of MB are assessed by the amplification by way of figuring out and focusing on interleukin-6 (IL-6) mRNA. E-MBP embedded with two AP websites is labelled with a fluorophore and a quencher on the ends of the stem. When one E-MBP acknowledges the focusing on RNA, APE1 would cleave the beacon strand within the web site of AP, whereas releasing the goal RNA to react for the subsequent cycle of identification and cleavage, and realizing sign amplification. In an acute paw irritation mannequin of Lipase (LPS) dealt of mice, the irritation paws exhibited a sustained fluorescence enhancement with E-MBP/V, whereas no apparent fluorescence elevated in PBS-treated paw. In contrast with the MBP/V, a stronger fluorescence sign is noticed within the E-MBP/V group on account of APE1-mediated sign amplification. On this technique, MBs are a promising means for intracellular mRNA monitoring and lots of different related research connected to macromolecules or nanoparticles also can utilized for bioimaging [72, 74, 75].


Aptamers are single-stranded oligonucleotides that may acknowledge a variety of potential organic targets, resembling ions, small molecules, nucleic acids, peptides, and macromolecules, dwell cells and tissues sensitively [76]. Moreover, aptamers can penetrate tissue limitations and internalize in cells quickly with excessive sensitivity on account of their low molecular weight [77, 78]. Nevertheless, the applying of aptamers for in vivo most cancers imaging stays limitation due to the poor stability in blood and the degradation by nucleases. Due to this fact, most of aptamers are utilized accompanied with the nuclear acid sequences, NPs or polymers, and so on. [79,80,81,82] For instance, Shi et al. [79] designed a novel locked nucleic acid (LNA)/DNA chimeric aptamer probe (TD05.6) with a DNA aptamer towards lymphoma Ramos cells TD05 because the mannequin by way of 7-base pair-LNA incorporation and three’-3’-thymidine (3’-3’-T) capping complement, which is used for tumor detection in serum and in vivo imaging. After intravenous injection of Cy5-labeled aptamers, Cy5-TD05 circulates inside 30 min in the entire physique together with the tumor web site with robust fluorescence indicators and at 150 min Cy5-TD05 is cleared constantly with fluorescence indicators fading. In distinction, Cy5-TD05.6 is at a a lot slower clearance price each in goal and nontarget areas as a result of improved nuclease-resistant stability of LNA-modified aptamers. The sign of Cy5-TD05.6, even at 600 min, remains to be apparent within the tumor web site. The efficient imaging window is considerably prolonged from < 150 min of Cy5-TD05 to > 600 min of TD05.6, indicating that the mixed LNA-substitution and three’-3’-T-modification technique may generate secure aptamer probes with considerably improved in vivo tumor imaging high quality. As well as, Gong et al. [80] developed branched polyethyleneimine (PEI) protected aptamer molecular probes for particularly figuring out tumors and effectively growing the circulation time. The probes make the most of the PEI that may defend aptamers from DNase degradation and the aptamer TD05 that may goal Ramos cells in Ramos tumor-bearing nude mice. In contrast with the management DNA and the one TD05 aptamers, fluorescence indicators of PEI/TD05 complexes from the tumor tissue are distinct at 30 min and remained growing in 4–5 h after injection, which demonstrates the properties of focusing on Ramos tumors and growing the circulation time in mice.

Aptamers are additionally often used as a part of probes as focusing on molecules, and are designed to an aggregation with higher efficiency collocating with NPs or DNA buildings. Zhang et al. [81] reported a purposeful DNA-based photoacoustic (PA) probe through the use of the DNA labeled with the fluorophore IRDye 800CW (FDNA) and the DNA labeled with the NIR darkish quencher IRDye QC-1(QDNA), respectively. A thrombin binding aptamer (TBA) is chosen as a recognition unit and thrombin as a goal (Fig. 3A). When inactivated, TBA is carefully bond with QDNA and the probe is in a quenching state as a result of shut proximity of two dyes. However, when TBA combines with the thrombin, QDNA labeled with IRDye QC-1 is much away from important probes ensuing within the luminescent sign. To check the feasibility of in vivo imaging by injecting the probes into the flanks of BALB/c mice, the thrombin and PBS (automobile management) are injected to the left and proper flanks, respectively. Solely the location containing thrombin reveals the sign noticed in PA imaging in vivo. After the injection of 30 min, the PBS-treated mice present no important distinction of normalized PA780/PA725, and because the time elevated from 30 to 45 min, the PA sign ratio will increase, whereas the ratio enhance on the thrombin-treated flanks is considerably increased.

Fig. 3
figure 3

Reprinted with permission from ref [74, 75, 81, 83]

(A) Scheme of oncogene-targeting PA probe for ratiometric photoacoustic imaging of thrombin and in vivo PA imaging in response to PBS and thrombin [81]; (B) Technique of cancer-targeting theragnostics utilizing MFAS miR-221 MB and in vivo imaging of astrocytoma-targeting theragnostics with fluorescence imaging (higher panel) and bioluminescent imaging (low panel) [83]; (C) Schematic of the SNAB know-how and telomerase detection in resolution and time-lapse fluorescent pictures of tumor in vivo tumor (crimson circle) and tumor-free tissue (black circle) [74]; (D) Schematic diagram of AuNPs functionalized with a dye (Cy3) labeled hairpin-DNA and Epi-fluorescence evaluation of nude mice bearing orthotopic human gastric most cancers cells (0.5, 4, 24, 72 and 120 h) [75].

To raised acknowledge the illness web site and make up for the insufficiency of a single probe, Kim et al. [83] designed a nanoparticle (MFAS miR-221 MB) by combining AS1411 aptamer and miRNA-221 MB (miR-221 MB)-conjugated magnetic fluorescence (MF) collectively to focus on, picture and treatment the most cancers concurrently (Fig. 3B). The AS1411 aptamer may goal the nucleolin protein with excessive expression in most cancers cells and the miR-221 MB may hybridize with the corresponding miRNA-221, inhibiting the expression of miRNA-221 to attain the therapeutic impact. The FI (higher panel) and bioluminescent imaging (low panel) for six days are proven in Fig. 3B. The writer implanted the astrocytoma with two sorts of C6 cells within the nude mice: one is the MFAS miR-221 MB and nuclear issue kappa B (NF-kB)/Firefly luciferase (Fluc) co-transfected into C6 cells in the suitable thigh, and the opposite is just NF-kB/Fluc within the left thigh as a management. It may be noticed that the suitable thigh of MFAS miR-221 MB-treated mice are regularly seen on the fourth day and invisible on the sixth day after therapy, whereas the left thigh with out MFAS miR-221 MB has no fluorescent indicators (higher panel). Within the bioluminescent imaging, MFAS miR-221 MB-treated mice have non-obvious sign for six days in the suitable thigh completely different from the left thigh with excessive bioluminescent sign regularly (decrease panel). In one other research, Shi et al. [82] constructed a hairpin-structured activatable aptamer probe (AAP) consisting of a selected sgc8 aptamer (A-strand), a poly-T linker (T-strand), and a brief DNA sequence (C-strand) with a fluorophore and a quencher with the intention to detect the cell membrane protein tyrosine kinase-7 (PTK7) for human acute lymphoblastic leukemia CCRF-CEM cells. As soon as AAP contacts with the tumor web site, it should bind with the protein and result in the fluorophore activated. The fluorescence pictures reveal that AAP is activated with a dramatic fluorescence enhancement, and that AAP might be noticed in the entire physique quickly at 15 min and nearly be eradicated at 60 min, but with the tumor web site essentially the most conspicuous. Evaluating with the management probe and the “always-on” aptamer probe, AAP may very well be hardly influenced by the non-target tissues, which has the next sign making the considerably enhanced picture distinction in addition to shortened detection time to fifteen min.

Nanoparticles (NPs)

By conjugating biomolecules with nanomaterials, quite a few novel hybrid supplies utilized within the medical discipline have been generated. NPs with sizes within the vary of 1-100 nm are demonstrated distinctive properties that these NPs are simply internalized into the strong tumors by way of the improved permeability and retention impact (EPR) [84, 85]. There exist quite a lot of NPs-based therapeutics approving for medical functions in strong tumors, resembling Doxil (pegylated liposomal doxorubicin, ca. 100 nm) and Abraxane (albumin-bound paclitaxel NP, ca. 130 nm) [86, 87]. Up until now, the widely utilized nanomaterials for nanotechnology research embody natural and inorganic NPs, polymers, hydrogels, liposomes, polymeric micelles, and so forth. When it comes to natural and inorganic NPs, noble metallic NPs, magnetic NPs, QDs, graphene or graphene-like two-dimension nanosheets, and magnetic NPs and so on. have been studied [28].

AuNPs with the properties of ease in preparation and functionalized, biocompatibility, and size-dependent optical properties, which make them extraordinarily enticing for sensors, imaging, drug supply, remedy diagnostic and so forth. Prior to now a long time, AuNPs have been studied to conjugate with thiols, peptides, antibodies, and DNA molecules for the applying of sensing, cell imaging, and drug supply functions [88]. On this regard, it has been verified that each the soundness and cell uptake effectivity of DNA are boosted after conjugating to AuNPs. Due to this fact, DNA-AuNP nanoconjugates turn out to be probably the most versatile hybrids bionanomaterials. At current, the event of DNA-AuNP fluorescent probes has been drawing growing consideration as a result of robust fluorescence quenching of AuNPs. Moreover, particular DNA sequences with a number of dimensions can enhance the potential for probes for imaging in vivo [89, 90]. For instance, Liu et al. [74] designed a mixture with spherical nucleic acids (SNAs) and exquisitely engineered MBs (spherical nucleic acid beacon, SNAB) to determine irregular cells based mostly on the molecular phenotype of telomerase exercise. Telomerase is an enzyme accountable for the elongation of telomeres in cells, which is inhibited in regular human tissues however extremely reactivated in tumors. Thus, the telomerase exercise might be thought to be biomarker for tumor prognosis [91,92,93]. The beacon has an extended telomerase primer (TP)-carrying strand prehybridizing a brief DNA strand modified by fluorophore (FL-strand) and is immobilized onto the AuNPs floor in a quenched state due to AuNPs. When related to telomerase, the TP-carrying strand is acknowledged by the catalytic core of telomerase and adjustments the formation to secure DNA hairpin construction ensuing within the separation of the FL-strand with fluorescence restoring. The authors established the xenograft cervical tumor fashions by way of planting HeLa cells into the subcutaneous armpit space of mice. As proven in Fig. 3C, SNAB can determine tumor cells and present the crimson fluorescence sign after 40 min injection in contrast with regular websites. As time handed by, the fluorescence sign regularly elevated and lined the entire tumor mass confirming the SNAB efficient activation. In one other work, Conde’s group [94] developed a bio-responsive hydrogel-nanoprobe embedded with dark-gold NPs served as an activatable molecular nanoswitch loaded with the anticancer drug (5-fluorouracil (5-FU)), which might detect the triple-negative breast most cancers cells (TNBC) and be triggered by hybridization with goal multidrug resistance protein 1 (MRP1) mRNAs. The authors demonstrated that the bio-responsive hydrogel-nanoprobe may very well be anchored to the TNBC with in vivo imaging, concurrently displaying inhibitory results on tumors, and solely the nanobeacon anti-MRP1 with 5-FU has the power to offer environment friendly inhibition on tumor development, with an 90% tumor measurement discount after 14 days. Bao et al. [75] proposed an in vivo common instrument consisted of functionalized gold NPs (AuNPs) with a Cy3 dye labeled MB to inhibit most cancers cells improvement and metastasis in a murine tumor mannequin. The MB can interlock and hybridize with goal Kras mRNAs to inhibit the interpretation of the goal protein and obtain the remedy impact. In vivo picture reveals the fluorescence emission over a interval of 120 h (5 days) following nanobeacons injection (Fig. 3D). Solely nanobeacons with anti-Kras are in a position to observe an apparent and environment friendly sign of the first gastric tumor, and fluorescence sign is turned on at 4 h and maintained the sign till 120 h.

Aside from AuNPs, magnetic NPs (MNPs) entice substantial consideration for most cancers therapy as nicely on account of wonderful biocompatibility and degradation. Amongst MNPs, magnetite (Fe3O4), maghemite (Fe2O3) and iron oxide NPs (IONPs) are totally studied for biomedical functions [95]. Moreover, cobalt-ferrite NPs (CoFe2O4 NPs) possess outstanding physicochemical properties, mechanical hardness, improved stability and colloidal dispersibility below physiological situations, extra distinctive over different magnetic supplies. These days, CoFe2O4 NPs have been reported in nanobiosensing, bioseparation and purification, focused drug supply, imaging, and so on. [96] Hwang et al. [97] utilized magnetic cobalt-ferrite NPs because the central core to assemble a cancer-targeting multimodal imaging probe 67Ga-MNP@SiO2(RITC)-PEG/NH2-AS1411 (MFR-AS1411) coated with a silica shell and adorned by rhodamine B isothiocyanate fluorescence dye. Moreover, polyethylene glycol (PEG), Fmoc-protected amine moieties and a carboxyl group have been surrounded with the floor of particles, which have been additional labeled with the AS1411 aptamer and p-SCN-bn-NOTA chelator (Fig. 4A). In bioimaging in vivo, the MFR-AS1411-administered mice present 67Ga radioactivity on the web site of the administration, whereas the MFR-AS1411 mutant (MFR-AS1411 mt)-administered mice present speedy clearance by way of the bloodstream. The bioluminescence pictures (Fig. 4B) stably expressing luciferase in each thighs of MFR-AS1411- or MFR-AS1411mt-injected mice are clearly visualized, whereas the radionuclide sign is discovered solely in each thighs of the MFR-AS1411-injected mouse. In MR pictures proven in Fig. 4C, T2-weighted MR pictures of tumor-bearing mice injected with MFR-AS1411 present the MFR-AS1411 particles as black spots. All these outcomes point out that the imaging probes can goal nucleolin protein that extremely expresses on the membrane of most cancers cells, which might be monitored by fluorescent, radioisotope, and MRI modalities in vivo efficiently and effectively. In one other research, Solar et al. [52] fabricated a theranostic MRI nanoprobe (PDA-DNA-DTPA/Gd nanoprobe) for imaging and treating tumors with the low poisonous impact. The PDA-DNA-DTPA/Gd nanoprobe has a polydopamine (PDA) core coated by the single-stranded DNA S1 and its complementary strand DNA S2, and diethylenetriaminepentaacetic acid dianhydride (DTPA-DA) is sure to the ends of DNA S2 chelating Gd ions. This nanoprobe is impressed by the efficiency of DNA melting by the photothermal reagent, which might management the Gd releasing. Due to EPR impact, nanoprobes can probably be enriched in tumor websites by way of passive focusing on. After injecting the PDA-DNA-DTPA/Gd into the tumor web site of the 4T1 tumor-bearing mice, the optimum distinction of the MRI sign is noticed at 30 min. With the 808 nm laser irradiated, the T1 distinction of the non-irradiated tumor space has no change anymore, whereas the distinction of the tumor space following the laser irradiation weakens over time. After 1 h, the MRI sign is considerably decrease than that with out laser irradiation.

Fig. 4
figure 4

Reprinted with permission from ref [97, 98]

(A) Schematic illustration of steps concerned in preparation of MFR-AS1411 [97]; (B) Radionuclide pictures of C6 tumors at 1, 6, and 24 h after injecting MFR-AS1411 and MFR-AS1411mt [97]; (C) MR pictures of tumor-bearing mice after injection of MFR-AS1411 [97]; (D) Schematic illustration of most cancers cell membrane camouflaged nanoprobe (DMSN-DP@CM) for catalytic ratiometric PAI of miRNA detection in residing mice [98]. (E) In vivo fluorescent pictures of MCF-7 tumor bearing mice have been detected after injecting DMSN-DP@CM resolution into the tail vein [98]. (F) PA pictures of MCF-7 tumor bearing mice handled with DMSN-DP@CM with completely different time factors [98].

Owing to optical properties of robust luminescence, excessive photostability, and size-tunable emission wavelength, semiconductor QDs have obtained broad consideration as a brand new era of fluorescent probes [99, 100]. Related with iron oxide nanocrystals, QDs with distinctive nanostructure are in a position to exhibit novel optical, digital and magnetic properties. At a 5-100 nm diameter, QDs-based NPs, with giant floor areas and purposeful teams, have the potential to hyperlink the a number of diagnostic modalities resembling optical, radioisotopic or magnetic with most cancers therapeutic approaches resembling photothermal theray, photodynamic theray and immunotherapy [101]. By assembling DNA with QDs, Dubertret et al. [102] encapsulated QD-micelles with phospholipid block-copolymer micelles and DNA to carry out in vivo imaging. The authors chosen the simply obtained Xenopus because the experiment goal and microinjected in early-stage Xenopus embryos. The completely different phases and particular QD intracellular localizations might be noticed by QD labeling in Xenopus embryos.

As well as, owing to the massive radial pore buildings and extremely accessible floor areas, Dendritic mesoporous silica NP (DMSN) have attracted super consideration in biomedical functions as nicely [103]. As an example, Zhang et al. [98] designed most cancers cell membrane camouflaged nanoprobe (DMSN-DP@CM) constructed by MCF-7 cell membrane-encapsulated DMSN. The nanoprobe is functionalized with DNA-photoacoustic (DNA-PA) probes and glutathione (GSH)-responsive DNA gasoline strands (Fig. 4D). The near-infrared fluorophore/quencher pair (IRDye 800CW/IRDye QC-1) of DNA-PA probes might be activated by miRNA in residing mice by set off disassembly of a number of PA fluorophore probes from the quencher with the help of GSH-responsive DNA gasoline strands by way of the entropy-driven course of. The PA sign was produced by two wavelengths (PA725 and PA780) comparable to the absorption peak of the near-infrared fluorophore/quencher pair (IRDye 800CW/IRDye QC-1) on the DMSN-DP@CM, which might be acknowledged by goal miRNA. When the probes are handled with the goal miRNA-21, the contact-mediated quenching DNA conduct was relieved as a result of miRNA-21-mediated displacement response, ensuing within the ratio change of PA indicators on the above two wavelengths. After injecting DMSN-DP@CM resolution into the tail vein of the BALB/c mice with subcutaneous MCF-7 tumor, the fluorescence sign may very well be noticed that DMSN-DP@CM was in a position to goal and accumulate on the tumor web site (Fig. 4E). As proven in Fig. 4F, the PA imaging reveals that PA725 sign reached its most worth after injection of 1 h and decreased together with time growing, whereas PA780 sign exhibited reached its most worth at 6 h.

Graphene-based supplies resembling graphene oxide (GO) are a promising materials to use to photothermal therapy of most cancers on account of their broad NIR absorbance, giant particular floor space and considerable purposeful teams [104]. Moreover, graphene has π-rich conjugation, which might work together with single-stranded DNA (ssDNA) molecules by way of π-π stacking interactions. Useful from these properties, graphene is usually a DNA service and a fluorescent quencher concurrently [105, 106]. Yang et al. [107] reported a extremely delicate technique that two Cy5 molecules have been labeled onto the other ends of a single MB (2Cy5-MB) and the MB was adsorbed on the floor of GO (2Cy5-MB-GO) (Fig. 5A). Counting on the double-quenching impact, which is the graphene oxide (GO)-enhanced sign molecule quenching and the self-quenching impact of two Cy5, the fluorescence background was lowered. When meet the goal microRNA-21 (miRNA-21), the 2Cy5-MB varieties a duplex construction ensuing within the 2Cy5-MB releasing from GO and two Cy5 molecules separating with the fluorescence indicators restored. The fluorescence sign of 2Cy5-MB-GO can obtain about 156-fold enhance within the presence of the miRNA-21 targets. As proven in Fig. 5B, the three xenograft tumor fashions with completely different tumor cell line (MCF-7, HeLa, and HepG2 cells) are used to evaluate the practicability of 2Cy5-MB-GO. As a outcomes, 2Cy5-MB-GO can acknowledge the completely different tumor tissues with completely different fluorescence intensities and in contrast with 1Cy5-MB-GO, 2Cy5-MB-GO-treated tumor tissues show a lot increased fluorescence indicators.

Fig. 5
figure 5

Reprinted with permission from ref [107, 108]

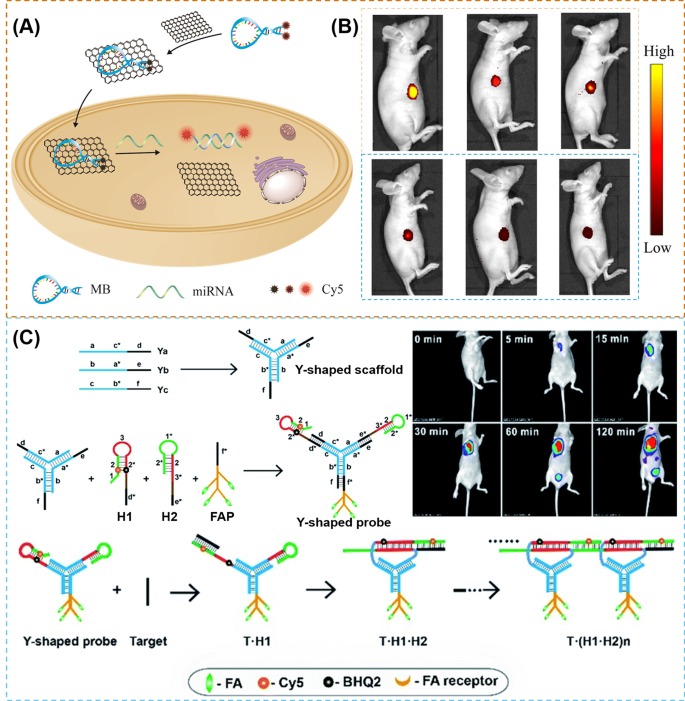

(A) Illustration of the formation of 2Cy5-MB-GO [107]; (B) In vivo imaging of three completely different xenograft tumor fashions (from left to proper): MCF-7, HepG2, and HeLa. The higher is injected with 2Cy5-MB-GO, the underside is injected with 1Cy5-MB-GO [107]; (C) Illustration of Y-H1-H2-FAP probe and time-dependent in vivo fluorescence pictures of HeLa tumor-bearing mice [108].

Multi-dimensional DNA

Though nanomaterials create new alternatives for DNA probes on organic functions, cytotoxicity remains to be a extreme drawback, largely limiting their sensible functions [24]. DNA itself is inherently non-cytotoxic as well-known, which may self-assemble to assemble varied a number of dimensional DNA probes, resembling Y-shaped scaffolds, DNA tetrahedrons, polyhedrons, DNA dendrimers, and DNA origami. These multi-dimensional DNA buildings are promising in biosensing, bioimaging, drug supply, cell biology and materials manufacturing functions [24, 109,110,111,112].

To significantly improve decision of tumor imaging, some researchers schemed out the amplified strategies resembling rolling circle amplification (RCA), strand displacement amplification (SDA), hybridization chain response (HCR), catalyzed hairpin meeting (CHA), and so on. [113,114,115] For instance, Wu et al. [67] utilized a sign amplification strategy CHA designing a phosphorothioated tripartite DNA probe (Y-H1-H2-AS1411) that may present the FI of survivin mRNA in early-stage prognosis of the sick mice. The DNA probe consists of three single-stranded DNAs, Ya, Yb and Yc by way of hybridization. Ya is linked with H2 (a hairpin probe adorned with a quencher moiety BHQ2), Yb is linked with AS1411 aptamer, and Yc is linked with H1(a hairpin probe adorned as nicely with a fluorescent reporter Cy5). Because the AS1411 aptamer can mediate the probes to be ingested into the cells, as soon as the tripartite DNA probes goal and enter most cancers cells, the goal mRNA may hybridize with H1 and provoke the CHA cycle. Cy5 and BHQ2 of hairpin H2 are separated and the quenched fluorescence sign was activated subsequently. For RNA imaging in residing mice, after being intravenously injected right into a tumor-bearing mouse, the obvious indicators might be noticed at 0.5 h and the optimum depth might be noticed at 1 h, through which the DNA probe may primarily accumulate within the tumor area, liver and urinary bladder quickly. After 8 h injection, the sign nearly disappears. Moreover, when the mice are injected with the non-targeting probe Y-H1-H2 and the non-amplification management probe Y-H6-H2-AS1411, solely very weak fluorescence indicators are noticed within the tumor areas. In the identical yr, Wu et al. [108] utilized one other sign amplification strategy, hybridization chain response (HCR), creating an identical phosphorothioated tripartite DNA probe (Y-H1-H2-FAP) that may hybrid with miRNA-21, which is overexpressing within the tumor. The DNA probe consists of three single-stranded DNAs, Ya, Yb and Yc by way of hybridization as nicely, and Ya is linked with H2 (a hairpin probe adorned with a quencher moiety BHQ2), Yb is linked with folate probe (FAP), and Yc is linked with H1(a hairpin probe adorned as nicely with a fluorescent reporter Cy5) (Fig. 5C). As a result of the folate (FA) receptors that overexpress within the tumor cells are acknowledged by FAP, the tripartite DNA probes may enter cells efficiently and hybridize with the goal mRNA with H1, and provoke the CHA cycle, following by the activation of quenched fluorescence sign. Within the in vivo RNA imaging of mice, the sign reveals a speedy enhance within the fluorescence responses within the HeLa tumors at 2 h post-injection.

DNA tetrahedron has been thought-about as probably the most sensible DNA nanocage buildings on account of its merely assembled capability from 4 DNA strands and preparation in excessive yield. Moreover, the tetrahedron is considerably proof against nucleases, which makes the DNA tetrahedron perfect for in vivo imaging [24, 110]. Lee et al. [116] utilized the Watson-Crick base complementation to self-assemble a tetrahedron oligonucleotide NPs (ONPs) with FA and Cy5. It’s proved that ONPs are able to focusing on the lesion of KB tumors, and concurrently the CT scanning picture and the three-dimensional FMT-CT picture reveal the obvious tumor web site of a tumor-bearing mouse. In comparison with the easy construction probe (FA-conjugated siRNA) with the self-assembled probe (ONPs) by way of the in vivo dwell fluorescence pictures, ONPs have a stronger sign with the identical measurement of FA-conjugated siRNA.

Tian et al. [117] utilized the tetrahedral DNA nanostructures (TDNs) with the property of internalization in residing cells in addition to excessive resistance to degradation to develop a biocompatible framework nucleic acid (FNA)-based focusing on probe for mind tumor imaging (Fig. 6A). The probes (ANG-TDNs) are modified with angiopep-2 (ANG) and NIR dyes. In vivo imaging research (Fig. 6B) in mice present that the fluorescent sign of ANG-TDNs is gathered within the mind space, indicating the extra environment friendly BBB shuttling of ANG-TDNs. Moreover, after 90 min injection in glioma mice (Fig. 6C), the fluorescence depth of ANG-TDNs is principally centered on the mind tumor area in contrast with TDNs, indicating that ANG-TDNs may cross the blood − mind barrier (BBB) and goal the glioma web site. Jiang et al. [118] developed a multiple-armed tetrahedral DNA nanostructures (TDNs) by combining fluorescent dye (Dylight 755), FA-conjugated ssDNA and radioactive isotope technetium-99 m (99mTc)-labeled ssDNA collectively (Fig. 6D). After intravenous tail injection of KB tumor-bearing mice (Fig. 6E), the authors discovered that FA-Dy-99mTc-TDN can accumulate on the space of the tumor successfully evaluating to the no FA probes and free FA probes. The NIR and SPECT imaging present the same phenomenon that the indicators are primarily on the tumor web site, liver, and bladder (Fig. 6F). In one other work, Kim et al. [101] fabricated a tetrahedral DNA nanoparticle (Cy5-Td) with Cy5 labeled for detecting sentinel lymph nodes (SLN). Evaluating with Cy5-Td, the linear duplex DNA with Cy5 (Cy5-Ds) reveals decrease fluorescence sign and fails to offer clear spatial info. Thus, tetrahedral DNA construction is a promising nanomaterial for in vivo imaging with the decrease background indicators. Shedding new gentle on completely different DNA construction know-how, Zhang et al. [119] designed an advanced tetrahedral framework DNA-enhanced (TDN-enhanced) HCR detection system (T-probe system) for cancer-related detection. As proven in Fig. 6G, the T-probe system consists of a TDN and two hairpin probes (H1 and H2) with fluorescein and quencher labeled within the stem area of H1. When detecting the goal, H1 may open by way of a toehold-mediated strand displacement (TMSD) response, and H2 opens as nicely with the hybridization of H1, triggering the additional HCR and the activatable fluorescence sign, leading to additional fluorescence sign amplification. After peripheral-tumor injection and tail vein administration, the fluorescence sign within the A375/MCF7 tumor might be noticed (Fig. 6H). Clearly, a speedy response of probes might be immediately noticed on the area of the tumor, and the fluorescence depth stays excessive stage at 25 min in contrast with the management hairpins and TM buffer. As well as, the probes correct focusing on capabilities with an apparent fluorescence sign appeared at 10 min in A375 tumor and 20 min in MCF7 tumor after intravenous injection of probes.

Fig. 6
figure 6

Reprinted with permission from ref [117,118,119]

(A) Synthesis scheme of DNA tetrahedron construction of ANG-TDNs (A) [117]; (B) 3D reconstruction of in vivo imaging of TDNs (prime) or ANG-TDNs (backside) handled mice [117]; (C) In vivo fluorescent pictures after injecting TDNs (left) or ANG-TDNs (proper) for 90 min in regular mice [117]; (D) Synthesis scheme of DNA tetrahedron construction of FA-Dy-99mTc-TDN [118]; (E) Dynamic biodistribution of monitored within the KB tumor-bearing nude mice for steady 1 h by way of fluorescent imaging [118]; (F) SPECT-CT imaging of FA-Dy-99mTc-TDN within the KB tumor-bearing nude mice 2 h put up injection [118]; (G) Schematic for the fabrication of the T-probe system and amplified imaging of multiplexed goal with T-probe by way of hybridization chain response (HCR) [119]; (H) In vivo fluorescence pictures obtained in 25 min after peripheral tumor injection (left) and after tail-vein injection (proper) [119].

Polyhedrons have wonderful benefits over tetrahedrons resembling extra recognition chains with an growing response price, loads of polygon edges with extra versatile design and better utilization price of the polygonal cavity, resulting in broad software in bioimaging and drug supply remedy [24]. Shih et al. [120] constructed a wireframe DNA nano-octahedron (DNO) with a lipid-bilayer. As proven in Fig. 7A, lipid-DNA conjugating as staple strands is firstly self-assembled with bacteriophage-derived scaffold DNA because the template strand in a surfactant resolution, following with annealing to the outer handles of non-encapsulated DNA nano-octahedron (N-DNO), which type micelles across the conjugates. Then, Liposomes are added and the blended surfactant-lipid micelles are obtained. Lastly, Dialysis selectively removes the surfactant and ends in a fused lipid bilayer across the DNO, forming the encapsulated DNO (E-DNO). In vivo optical imaging reveals that after injecting 120 min, E-DNO distribute all through the physique, whereas the managed AlexaFluor750-labeled oligonucleotide and N-DNO gathered within the bladder.

Fig. 7
figure 7

Reprinted with permission from ref [120121]

(A) Schematic of the encapsulation technique and in vivo optical imaging for evaluation of pharmacokinetics and biodistribution. (B) Dynamic biodistribution of QD, QD-M13 DNA, QD-triangle DNA origami, QD-tube DNA origami, and QD-square DNA origami monitored within the tumor-bearing nude mice for steady 24 h by way of FI

DNA origami has obtained a lot consideration as nicely within the areas of mobile imaging, focused payload supply, and managed drug launch, which might be folded into arbitrary shapes by way of an extended single strand of DNA hybridizing with a whole bunch of brief DNA strands to assemble a particular purposeful DNA construction [56, 57]. DNA origami might be chemically modified and built-in with varied biomolecules and NPs [56, 121]. As an example, Zhang et al. [121] assembled three sorts of DNA origami nanostructures together with triangular DNA, squared DNA, and tube-shaped DNA conjugated with QDs for tumor remedy in MDA-MB-231 tumor-bearing mice. As seen within the FI (Fig. 7B), triangle DNA reveals the very best accumulation (309.3 ± 33.1 × 106 p/s/cm2/sr) than the squared DNA (117.7 ± 5.0 × 106 p/s/cm2/sr) and tube-shaped DNA (124.3 ± 10.3 × 106p/s/cm2/sr) as a result of most desired passive tumor focusing on skill. As well as, triangular DNA possesses the power of long-term tumor uptake in vivo after observing the ex vivo FI of the tumor. The triangle DNA is principally gathered in tumor throughout 24 h. After confirm the tumor passive focusing on and long-lasting properties on the tumor area of the DNA origami nanostructures, the writer loaded the anti-cancer drug doxorubicin into the DNA origami, which reveals a big antitumor efficacy for breast-tumor-bearing mice with out apparent toxicity.

To enhance the detection sensitivity and goal recognition specificity of DNA nanoprobes, a number of methods are built-in collectively [122,123,124]. For instance, Yang et al. [124] assembled a multivalent DNA triangular prism (DTP) by way of a streptavidin linking three biotinylated DTPs. CHA reactions are launched to realized delicate, speedy and multiplexed imaging of miRNA in residing cells.
